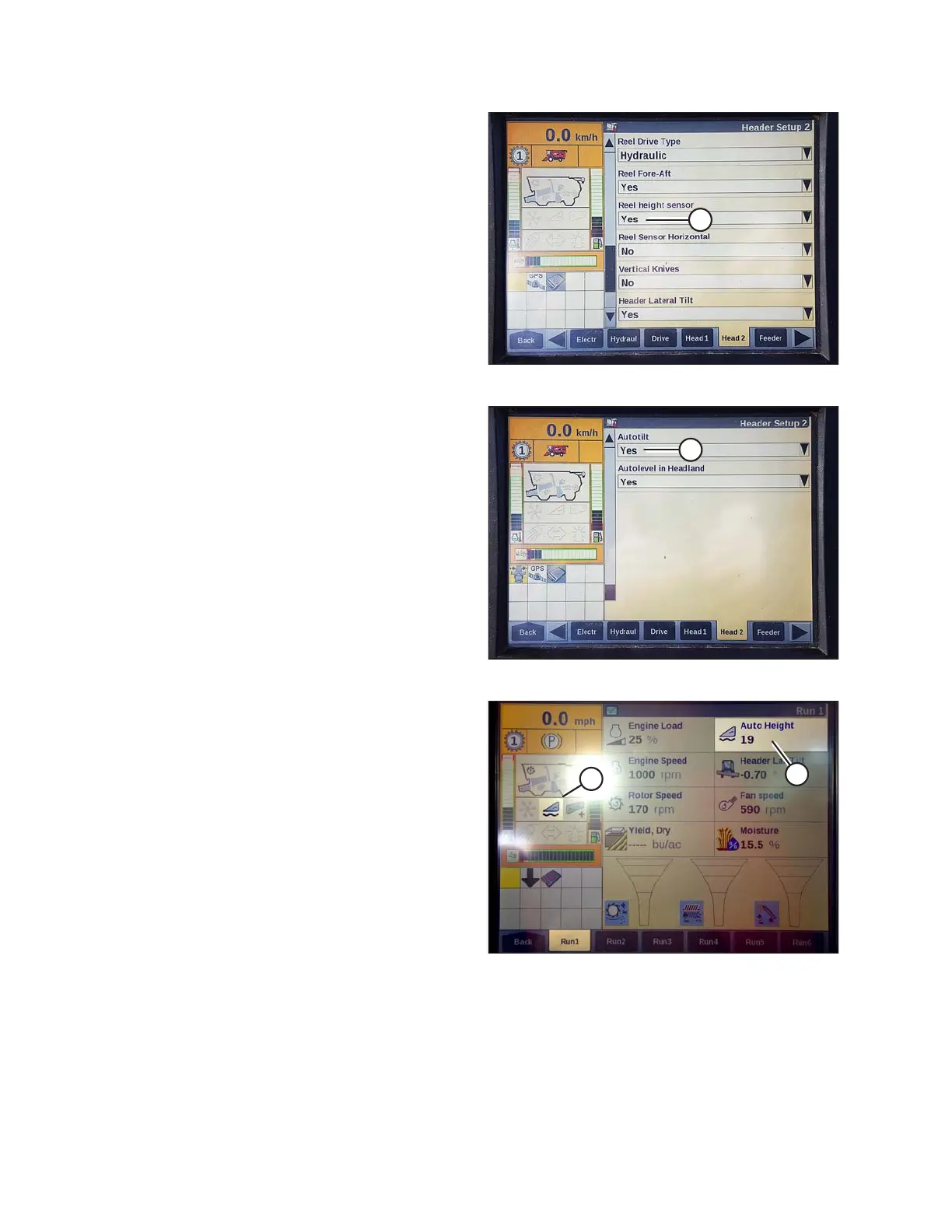

Figure 3.238: Case IH Combine Display
16. From the REEL HEIGHT SENSOR menu, select
YES (A).
Figure 3.239: Case IH Combine Display
17. Locate the AUTOTILT field (A).
• If using a two-sensor system: Select YES in the
AUTOTILT field.
• If using a single-sensor system: Select NO in the
AUTOTILT field.
Figure 3.240: Case IH Combine Display
NOTE:
Icons (A) and (B) appear on the monitor only after
engaging the separator and header, and then pressing
HEADER RESUME button on the control panel.
18. Ensure AUTO HEIGHT icon (A) appears on the monitor
and is displayed as shown at location (B). When the
header is set for cutting on the ground, this verifies that
the combine is correctly using the potentiometer on the
header to sense ground pressure.
NOTE:
AUTO HEIGHT field (B) may appear on any of the RUN
tabs and not necessarily on the RUN 1 tab.
