214683 233 Revision A

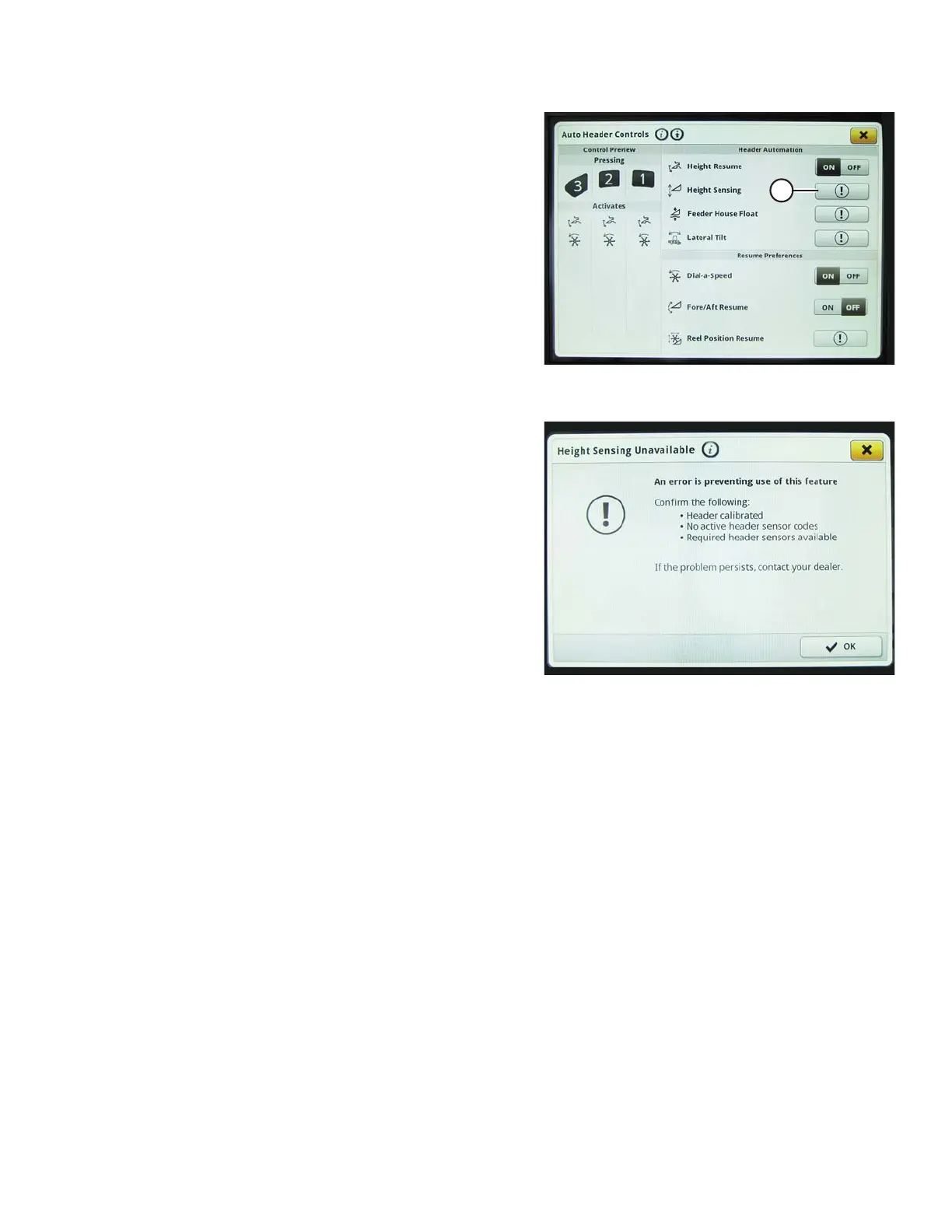

Figure 3.394: John Deere S7 Display – Auto
Header Controls
11. If the header has not been calibrated yet, an error icon
will appear on the HEIGHT SENSING button (A). Select
button (A) to view error message.
Figure 3.395: John Deere S7 Display – Height
Sensing Error Message
12. Read error message and then press OK.
13. Proceed to Checking Voltage Range from the Combine
Cab (John Deere S7 Series), page 234.
OPERATION
