MacDon FlexDraper FD140 - Page 256

214683 232 Revision A
1022770
A

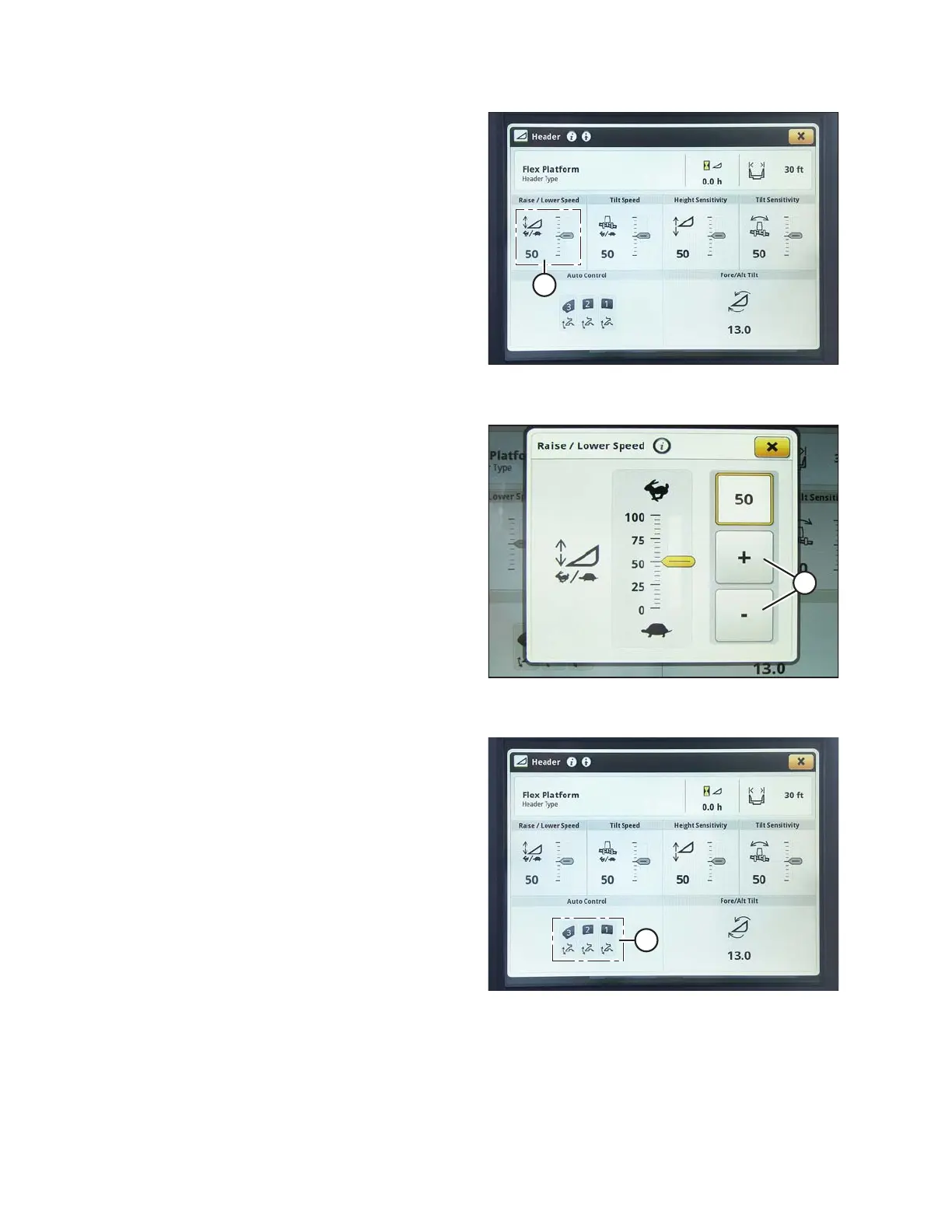

Figure 3.391: John Deere S7 Display –
Header Page
7. The raise/lower speed, tilt speed, height sensitivity, and
tilt sensitivity can all be adjusted from this page. Select
the option (A) you would like to adjust. This example
shows the raise/lower speed adjustment.
1022771
A
Figure 3.392: John Deere S7 Display –
Raise/Lower Speed Adjustment
8. Use the + and – buttons (A) to adjust the setting.
9. Press window close button in top right corner of the
window to return to the HEADER page.
1022766
1022766
A
Figure 3.393: John Deere S7 Display –
Header Page
10. Select the AUTO CONTROL icons (A). The AUTO
HEADER CONTROLS page opens.
OPERATION
