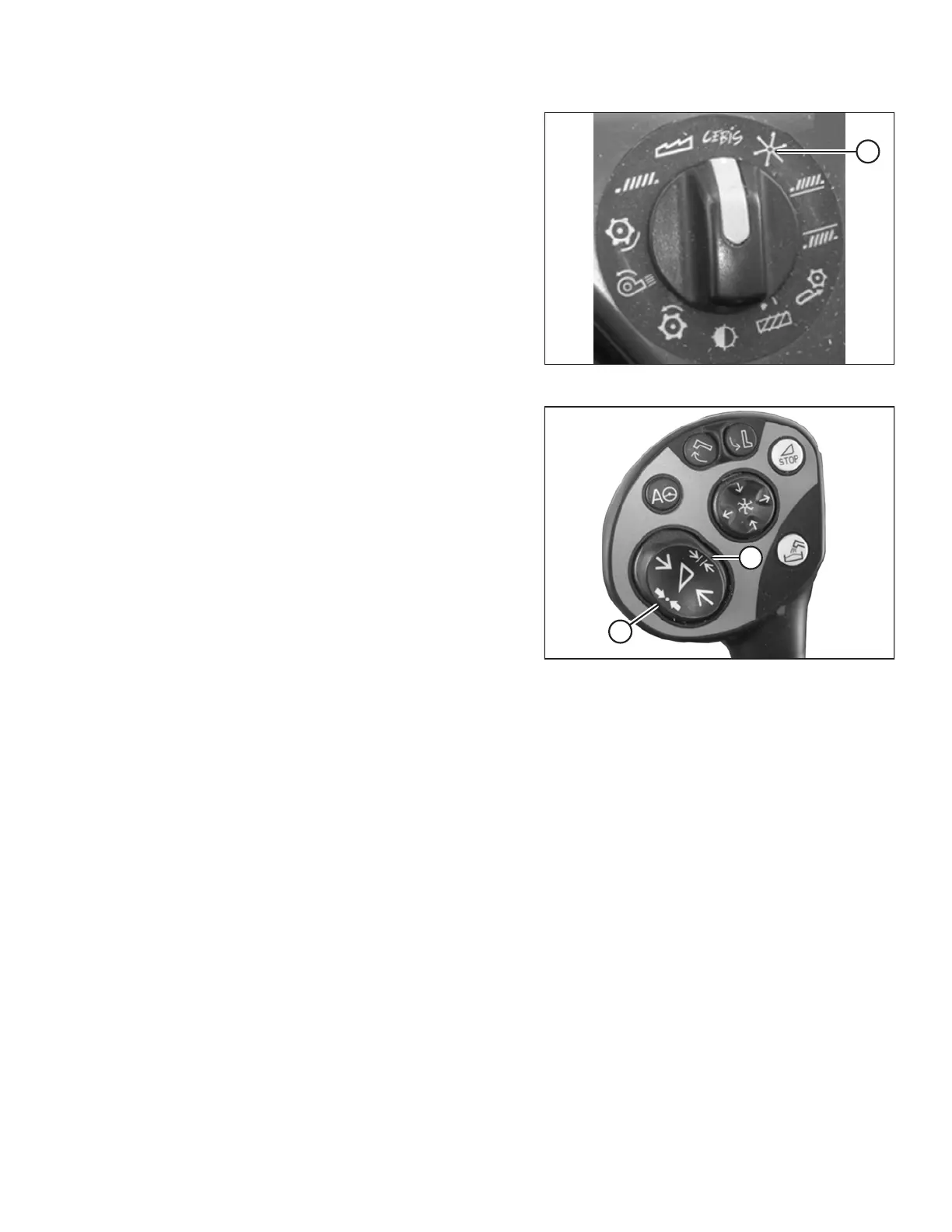

Figure 3.430: CLAAS Combine Rotary Switch
4. Manually adjust the reel speed by rotating the rotary
switch to the reel position (A), and then use the
– or + key to set the reel speed.
Figure 3.431: CLAAS Control Handle Buttons
5. Press and hold button (A) or button (B) for 3 seconds to
store the setting into the CEBIS (an alarm will sound
when the new setting has been stored).
NOTE:
Whenever button (A) or button (B) is pressed for
3 seconds, the current positions for reel speed and
cutting height are stored.
OPERATION
