MacDon FlexDraper FD140 - Page 274

214683 250 Revision A
1003750

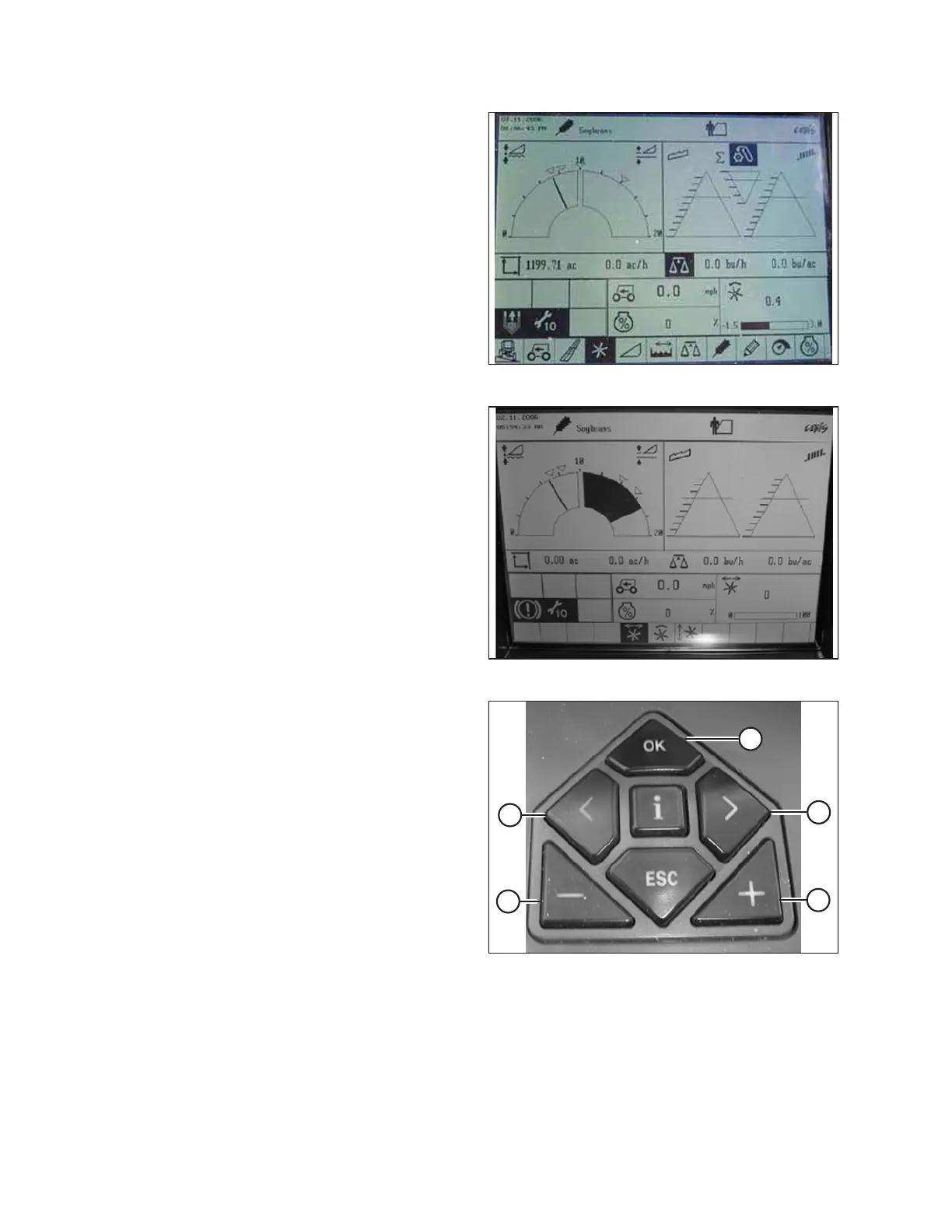

Figure 3.432: CLAAS Combine Display
1003754
Figure 3.433: CLAAS Combine Display
6. Use the < or > key to select the REEL WINDOW.
Window E15 will display the current advance or retard
speed of the reel in relation to the ground speed.
1010068
C
D
A
B
E
Figure 3.434: CLAAS Combine Controls
7. Press the OK key (E), and use the < key (C) or the
> key (D) to select the REEL FORE AND AFT window.
8. Use the – key (A) or the + key (B) to set the reel fore-aft
position.
NOTE:
Control handle button (A) or button (B) also can be used
to set the reel fore-aft position.
OPERATION
