214683 316 Revision A

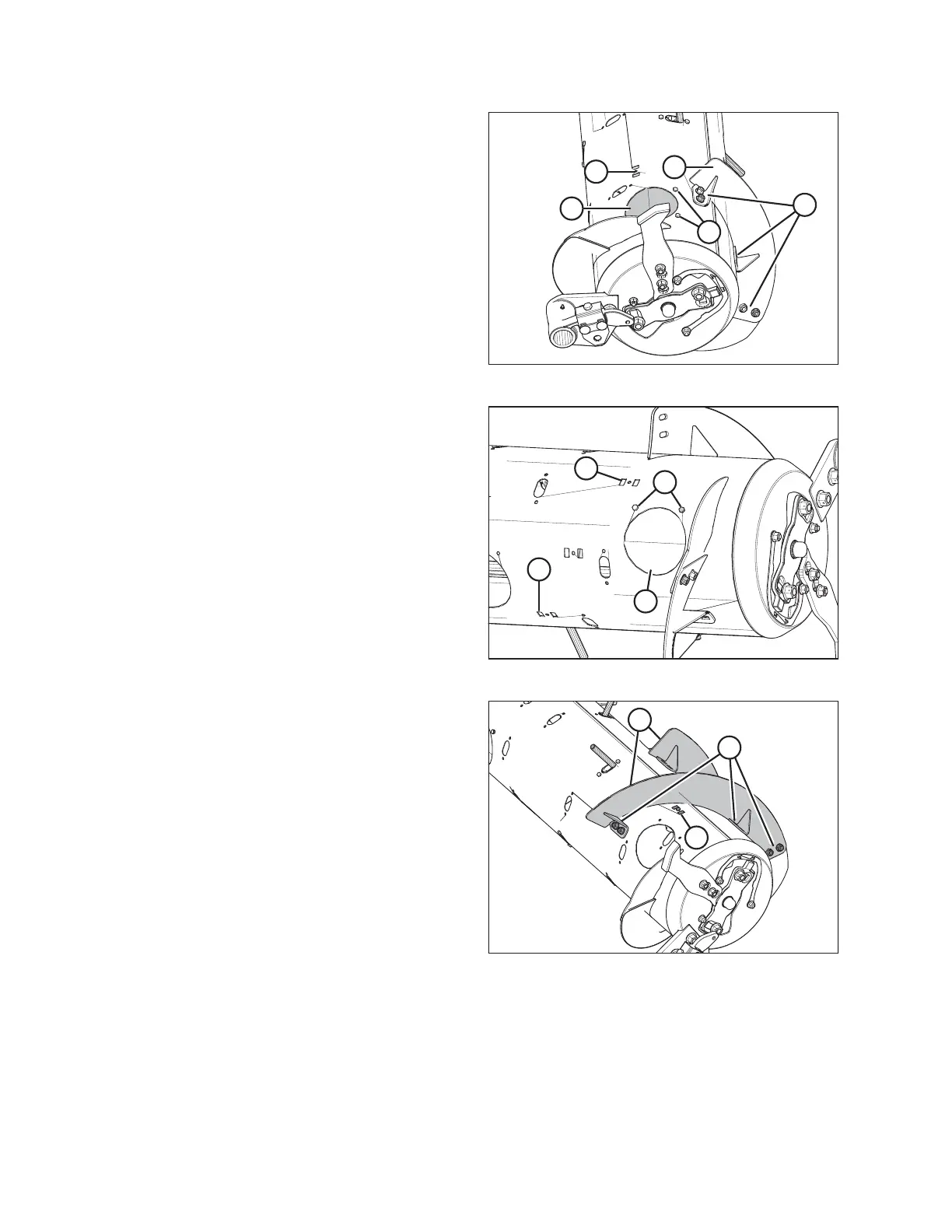

Figure 4.16: Wide Configuration (Right Side)
2. Remove bolts (A) and access cover (B) from the right
side of the auger. Retain for reassembly.
3. Remove hardware (C) and bolt-on flighting (D) from
the auger.
4. Remove and discard the flighting slot plug (E) located
close to the end of the flighting (D).
5. Converting from Medium configuration: Repeat
above steps for the other flighting on the right side.
Figure 4.17: Wide Configuration (Right Side)
6. Converting from Wide configuration: Remove
bolts (A), access cover (B), and two flighting slot
plugs (C) from the right side of the auger.
7. Repeat Steps 2, page 316 to 6, page 316 at the left side
of the feed auger.
Figure 4.18: Narrow Configuration (Right Side)
8. Install two bolt-on flightings (A) on the right side as
shown, and secure each flighting with six carriage head
bolts (MD #136178) and nuts (MD #135799) at
locations (B).
IMPORTANT:
Bolt heads must be installed on inside of auger to
prevent damage to internal components.
9. Torque all nuts and bolts to 47 Nm (35 lbf·ft) to eliminate
deflection on flighting, then torque them to 58–64 Nm
(43–47 lbf·ft).
10. Install flighting slot plug (MD #213084) at location (C)
from inside the auger and secure with an M6 hex head
bolt (MD #252703) and tee nut (MD #197263). Repeat
for the other flighting mounting locations.
HEADER ATTACHMENT/DETACHMENT
