214683 324 Revision A

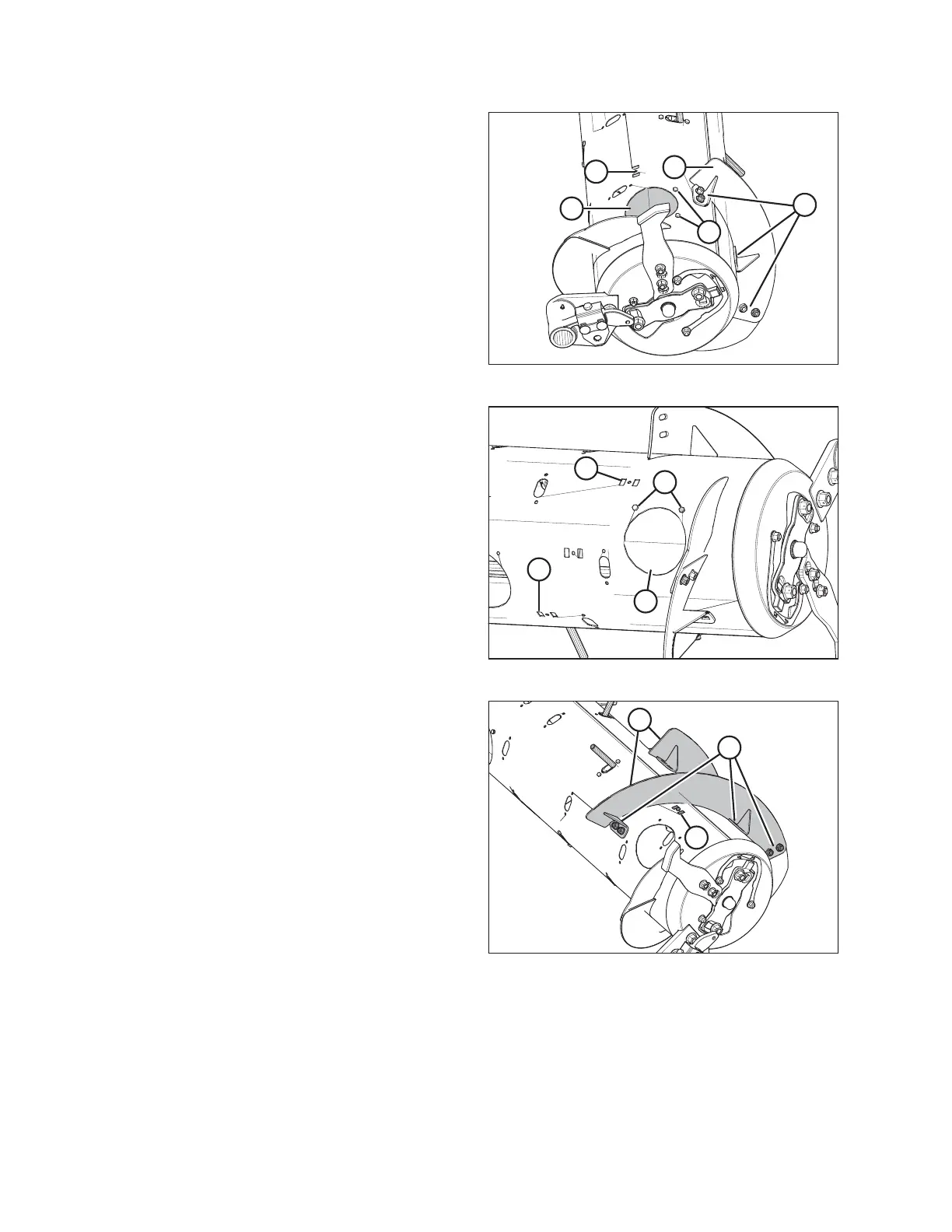

Figure 4.32: Wide Configuration (Right Side)
2. Remove bolts (A) and access cover (B) from the right
side of the auger. Retain for reassembly.
3. Remove hardware (C) and bolt-on flighting (D) from
the auger.
4. Remove the flighting slot plug (E) located close to the
end of the flighting (D).
5. Converting from Medium configuration: Repeat
above steps for the other bolt-on flighting on the
same side.
Figure 4.33: Wide Configuration (Right Side)
6. Converting from Wide configuration: Remove
bolts (A), access cover (B), and two flighting slot
plugs (C) from the right side of the auger.
7. Repeat Steps 2, page 324 to 6, page 324 at the left side
of the auger.
Figure 4.34: Right Side of Auger
8. Position two bolt-on flightings (A) on the right side, as
shown. Temporarily secure flightings with two carriage
head bolts and nuts at each location (B).
HEADER ATTACHMENT/DETACHMENT
