214683 326 Revision A

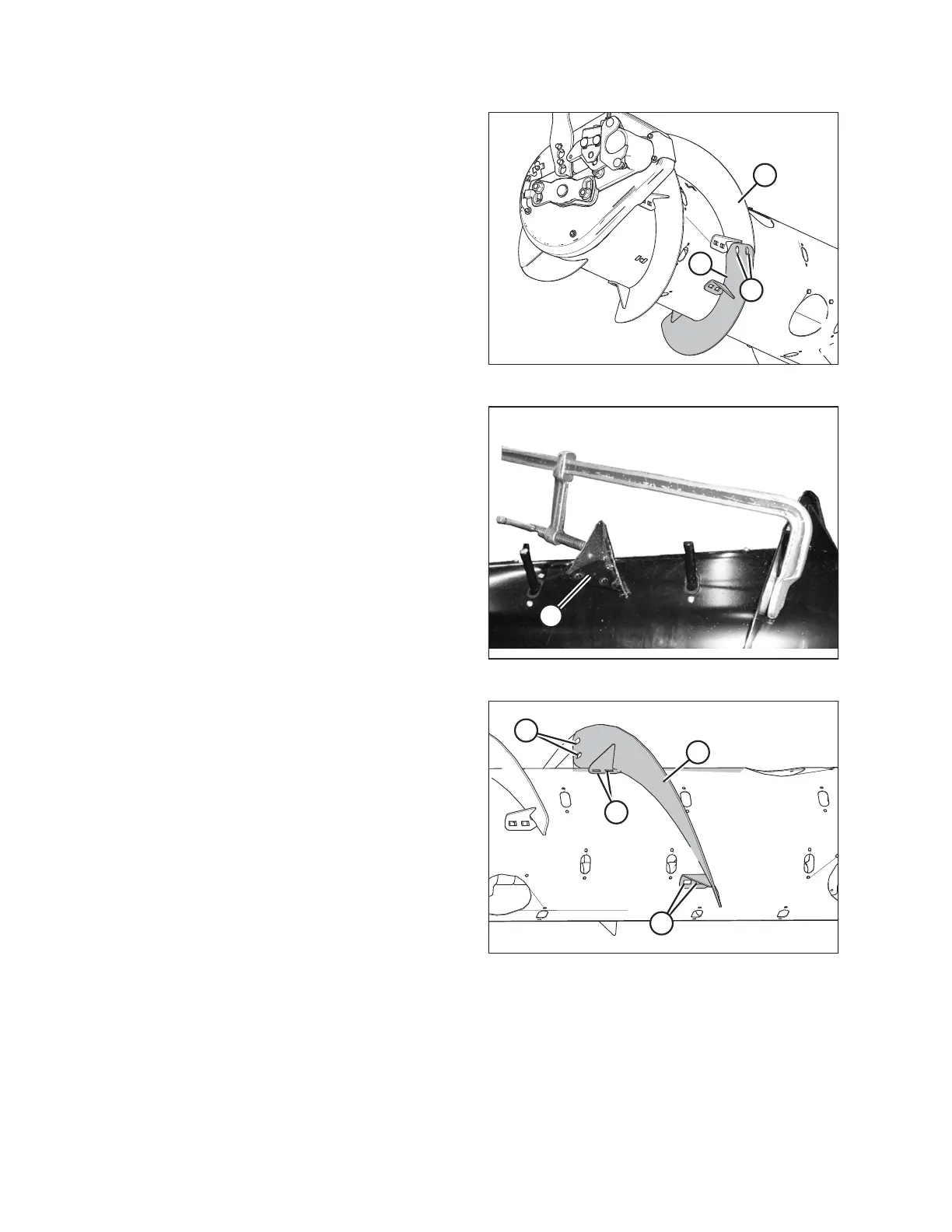

Figure 4.38: Left Side of Auger
18. Place bolt-on flighting (A) outboard of the other
flighting (B) on the left side of the auger, as shown.
19. Temporarily secure bolt-on flighting (A) with two button
head bolts and nuts at location (C).
Figure 4.39: Flighting Stretched Axially
20. Stretch flighting (A) to fit auger tube as shown. Use
slotted holes on flighting to get the best fit around the
auger tube.
Figure 4.40: Left Side of Auger
21. With flighting in the desired position, mark hole
locations (A) on auger tube.
22. Remove the flighting (B) from auger, and drill 11 mm
(7/16 in.) holes at the marked locations (A) on
auger tube.
23. Remove nearest access cover(s). Retain for
reinstallation.
24. Install the bolt-on flighting (B) using two button head
bolts and nuts at location (C), and four flange head bolts
and nuts at location (A).
IMPORTANT:
Ensure bolt heads at location (C) are on the inboard
(crop side) and nuts are on the outboard side of the
flighting.
25. Repeat Steps 18, page 326 to 24, page 326 for the
remaining flighting on the left side of the auger.
HEADER ATTACHMENT/DETACHMENT
