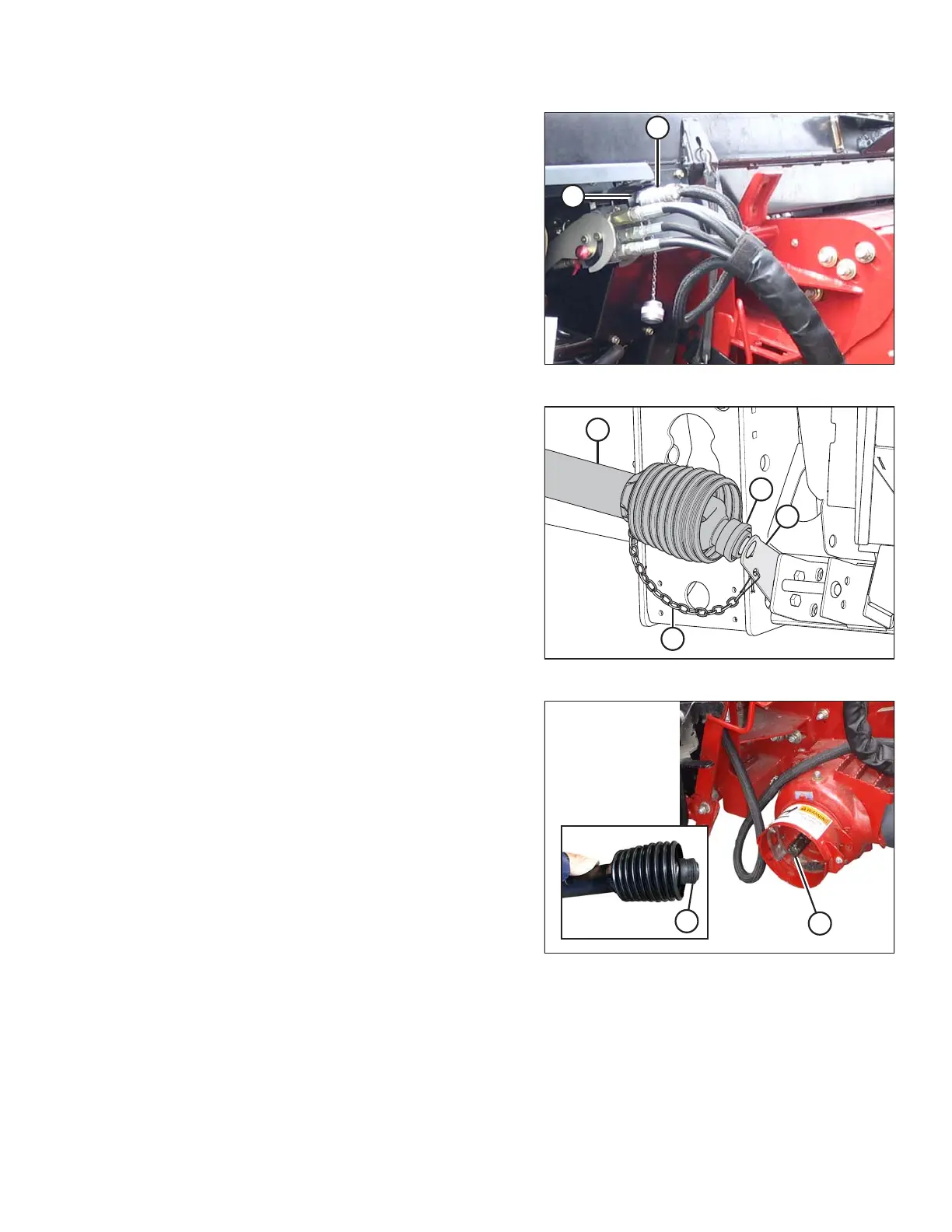

Figure 4.56: Electrical Connection
16. Align the lugs on the connector (A) with the slots in the
receptacle (B), push the connector onto the receptacle,
and turn the collar on the connector to lock it in place.
Figure 4.57: Driveline in Storage Position
17. Detach safety chain (C) from support bracket (B).
18. Pull collar (D) back to release driveline (A) from support
bracket. Remove the driveline from support bracket.
Figure 4.58: Combine Output Shaft
19. Pull back the collar (A) on the end of the driveline, and
push the driveline onto the combine output shaft (B)
until the collar locks.
HEADER ATTACHMENT/DETACHMENT
