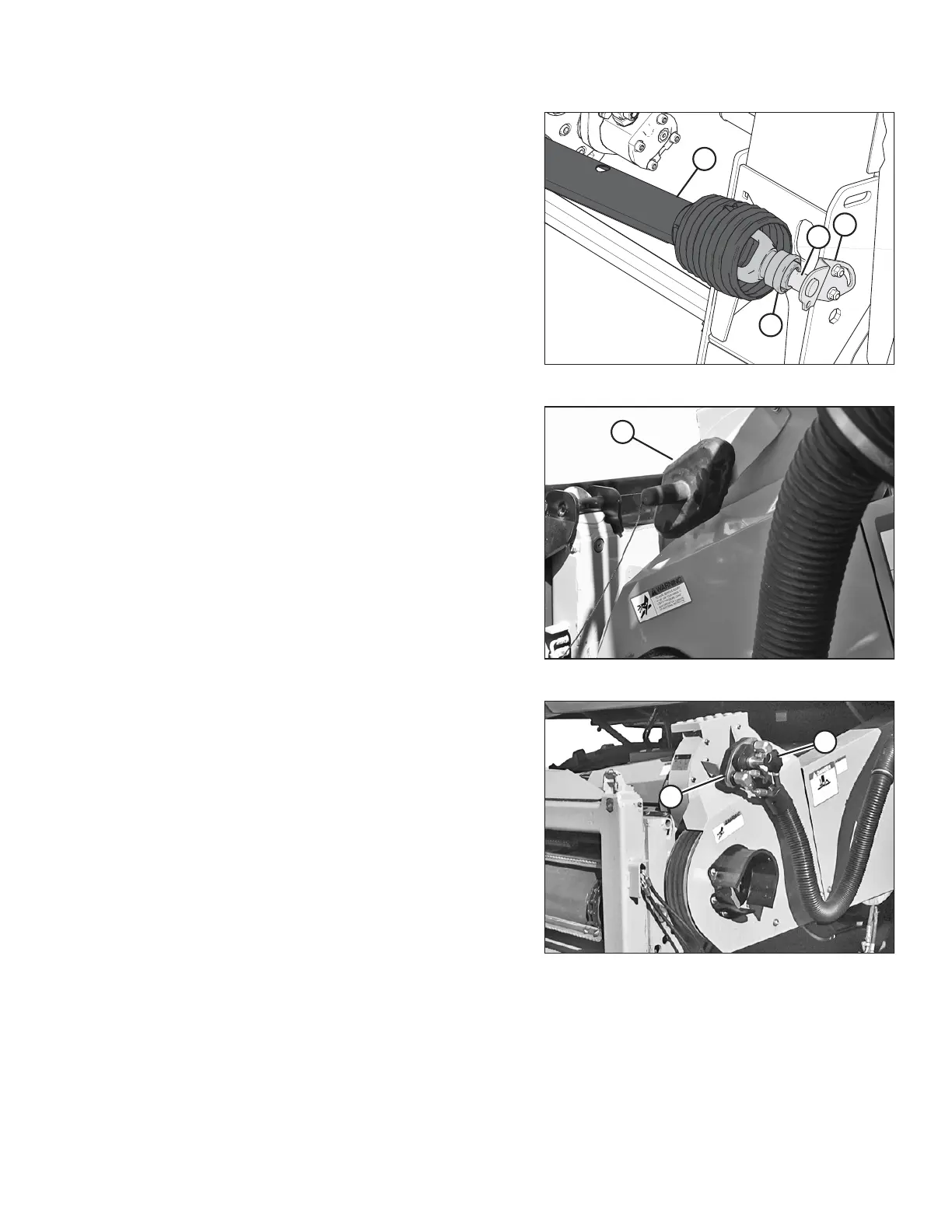

Figure 4.114: Driveline
5. Store the driveline (A) on the driveline support
bracket (B) by pulling back the collar (C) on the driveline
and fitting it over the support bracket weldment (D).
Release the collar so it locks into place over the
weldment.
Figure 4.115: Cover
6. Remove the cover (A) from the combine receptacle.
Figure 4.116: Combine Coupler
7. Position the coupler (A) onto the combine receptacle,
and turn the knob (B) to secure the coupler to the
receptacle.
