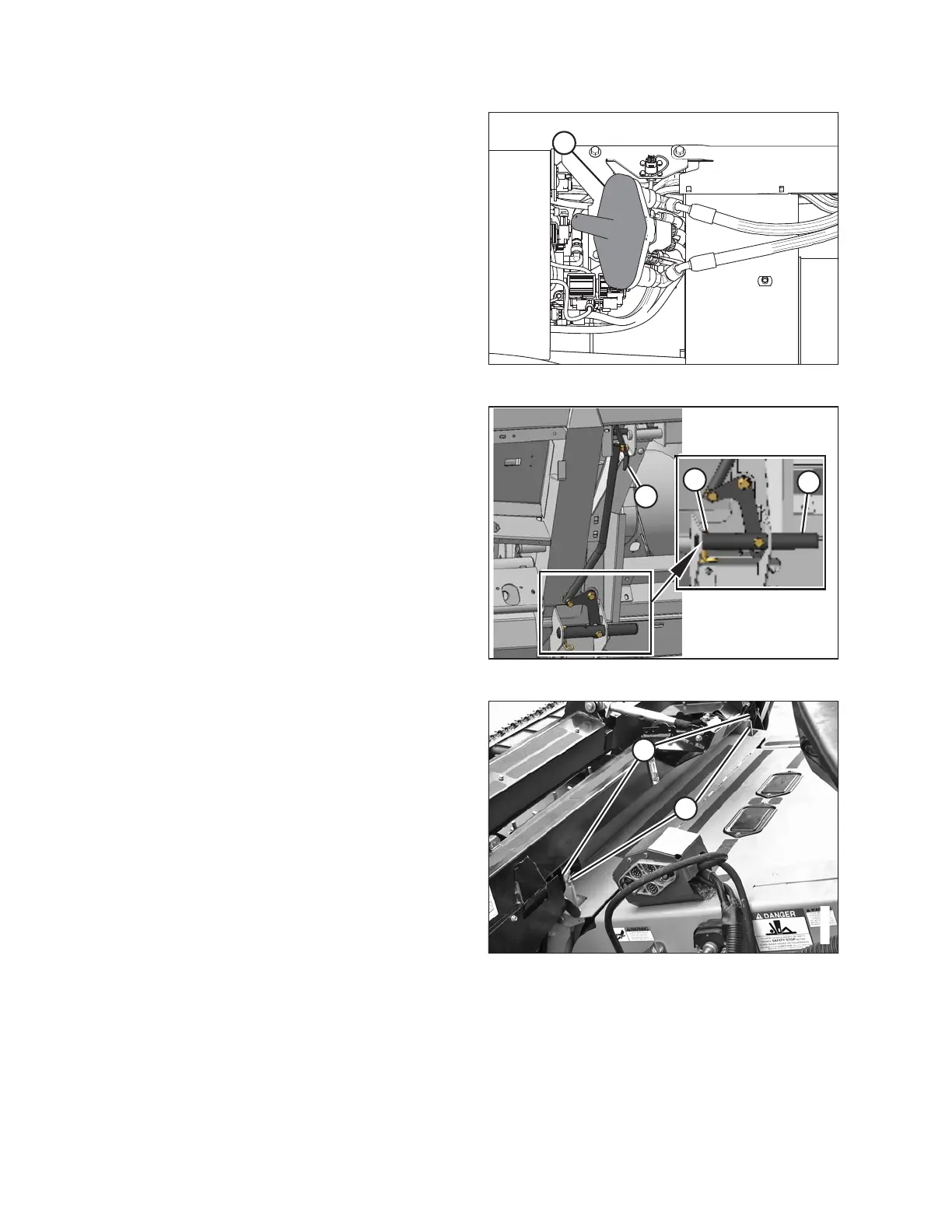

Figure 4.117: Float Module
8. Place the cover (A) on the float module receptacle.
1001528
C
B
A
Figure 4.118: Feeder House Locks
9. Remove the locking pin (A) from the float module
pin (B).
10. Raise the handle (C) to disengage the float module
pins (B) from the feeder house.
11. Replace the locking pin (A) in the float module pin, and
secure with the hairpin.
1001522
A
B
Figure 4.119: Header on Combine
12. Lower the feeder house until the feeder house posts (A)
disengage the float module (B).
13. Back the combine away slowly from the float module.
