MacDon FlexDraper FD140 - Page 393

214683 369 Revision A
1001146
B
A

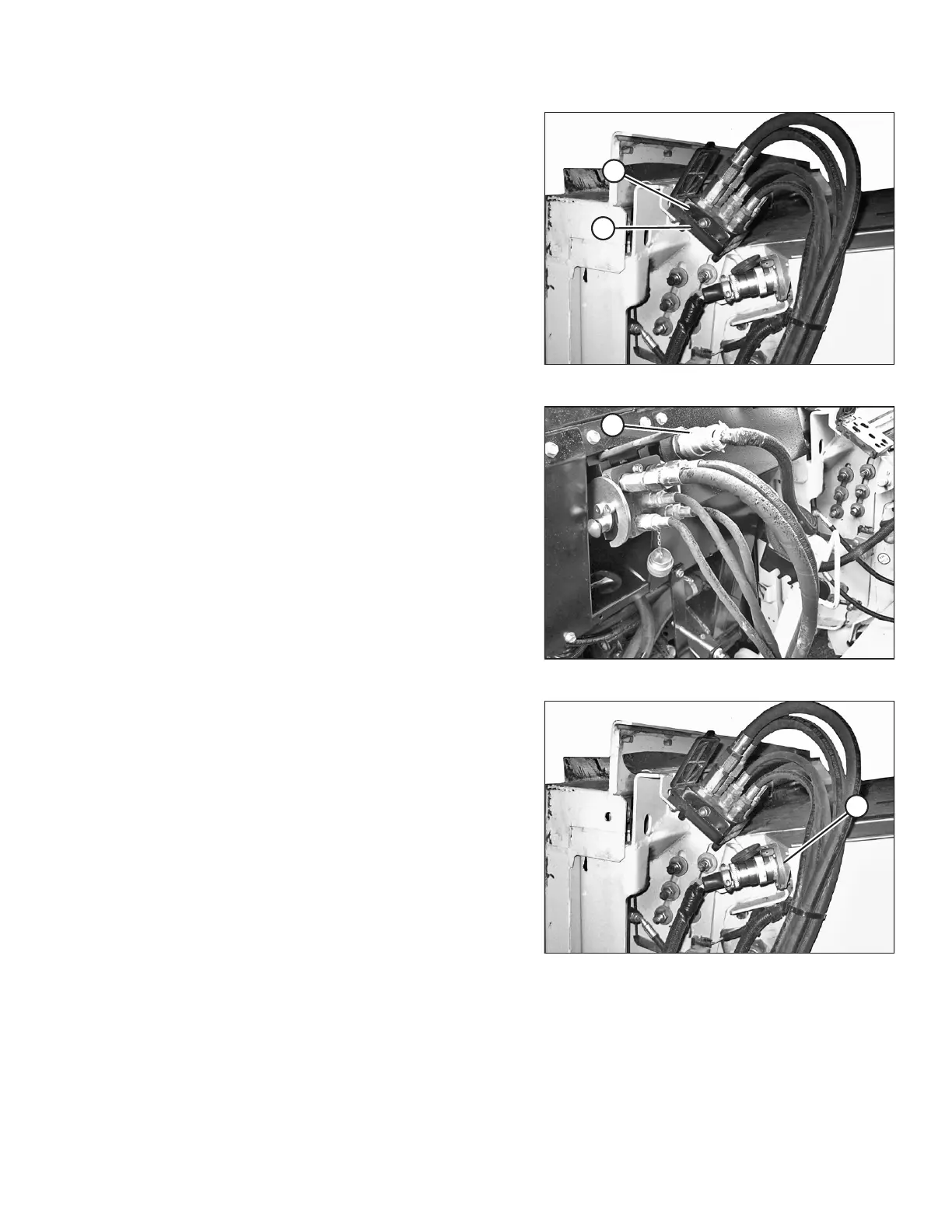

Figure 4.134: Combine Coupler
9. Position the hydraulic quick coupler (A) onto the storage
plate (B) on the combine.
1002536
A
Figure 4.135: Float Module Connections
10. Remove the electrical connector (A) from the float
module.
1002537
A
Figure 4.136: Combine Couplers
11. Connect the electrical connector to the combine at
location (A).
HEADER ATTACHMENT/DETACHMENT
