214683 393 Revision A
Every 100 Hours
Use high temperature extreme pressure (EP2) performance grease with 1% max molybdenum disulphide
(NLGI Grade 2) lithium base unless otherwise specified.

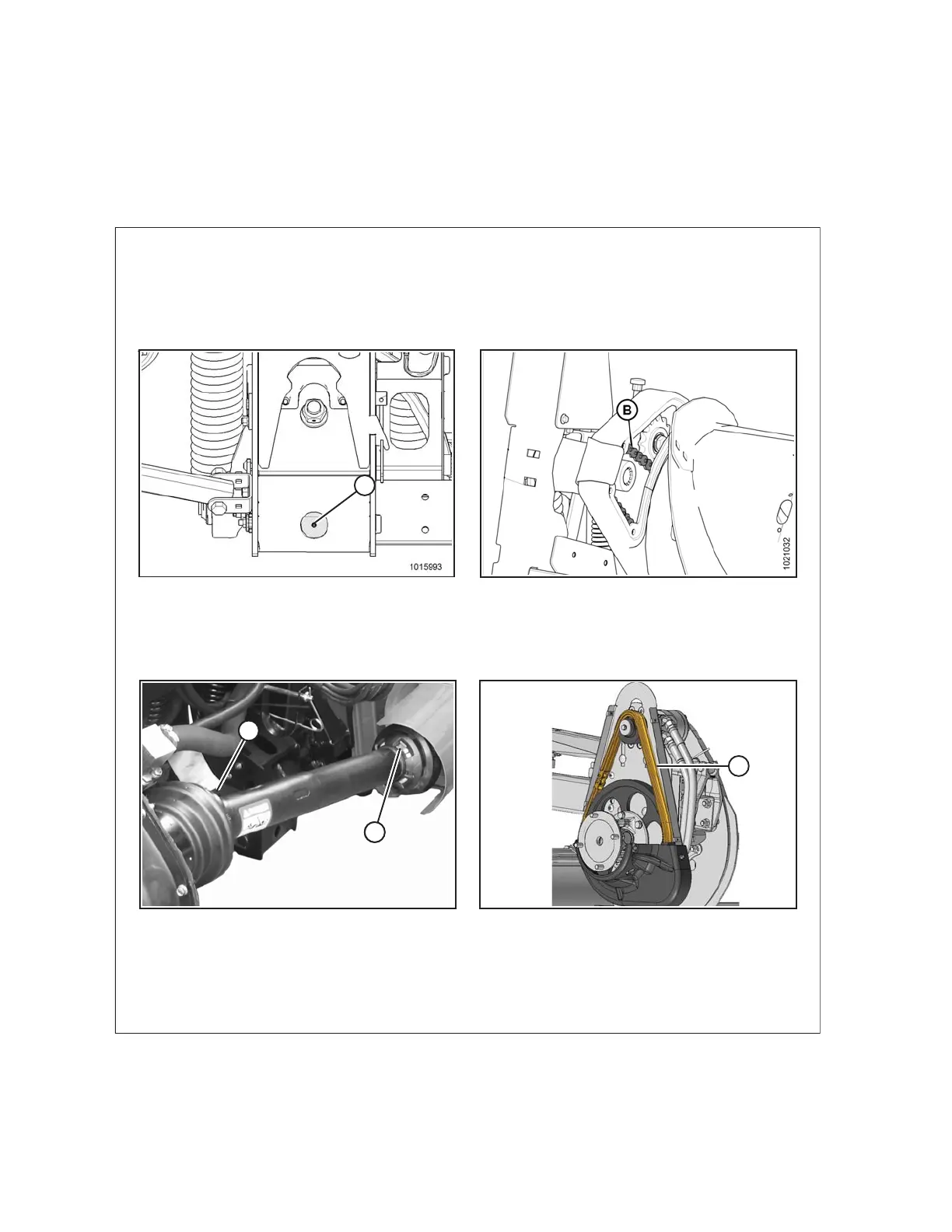

Figure 5.7: Every 100 Hours
1004752
1004755
E
E
1021034
A
C
C
D
A - Float Pivot – Right and Left
B - Auger Drive Chain. Refer to Lubricating Auger Drive Chain, page 402
C - Driveline Guard – Two Places
D - Reel Drive Chain – One Place. Refer to Lubricating Reel Drive Chain, page 400
