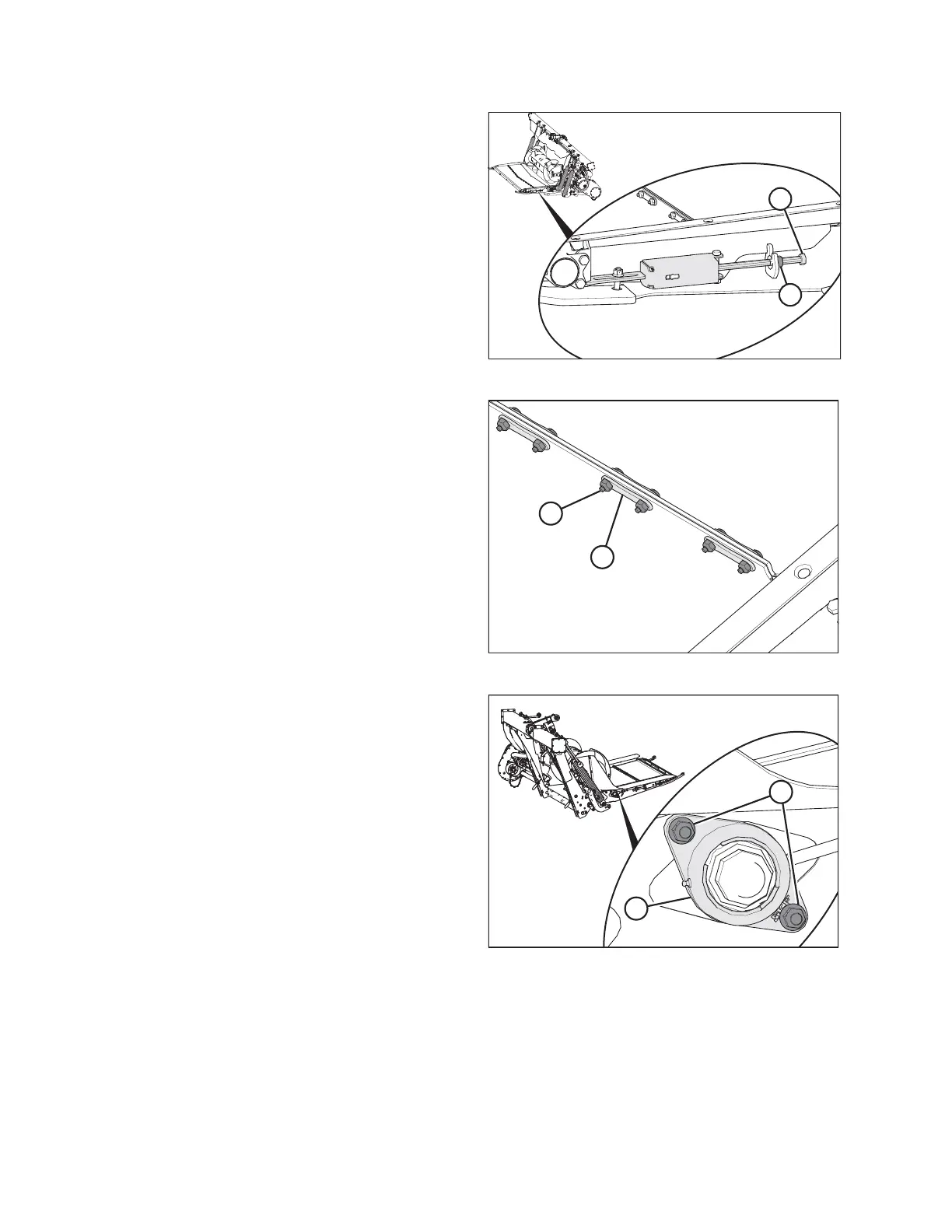

Figure 5.148: Feed Draper Tensioner
3. Loosen jam nut (A) and turn bolt (B) counterclockwise
to release the draper tension. Repeat at the
opposite side.
Figure 5.149: Draper Connector
4. Remove nuts and screws (A), and remove the draper
connector straps (B).
5. Pull the draper from the deck.
Figure 5.150: Drive Roller Bearing
6. Remove two bolts (B) from the drive roller cover (A).
MAINTENANCE AND SERVICING
