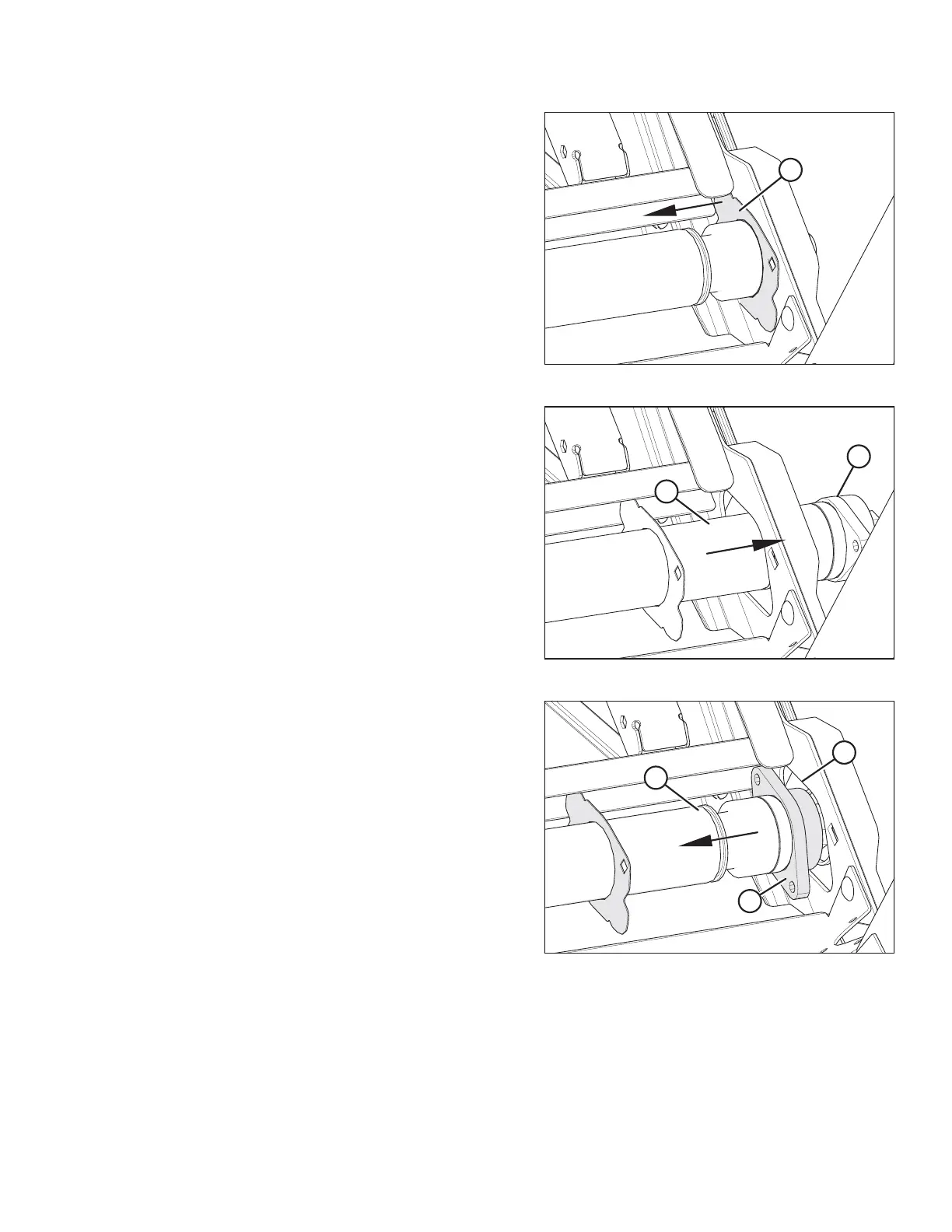

Figure 5.151: Drive Roller
7. Move the drive roller cover plate (A) to the left.
1013309
A
B
Figure 5.152: Drive Roller
8. Slide drive roller (A) with bearing assembly (B) to the
right until left end comes off of spline.
1013312
A
C
B
Figure 5.153: Drive Roller
9. Lift left end out of the frame.
10. Slide assembly (A) to the left, guiding bearing
housing (B) through frame opening (C).
11. Remove roller (A).
