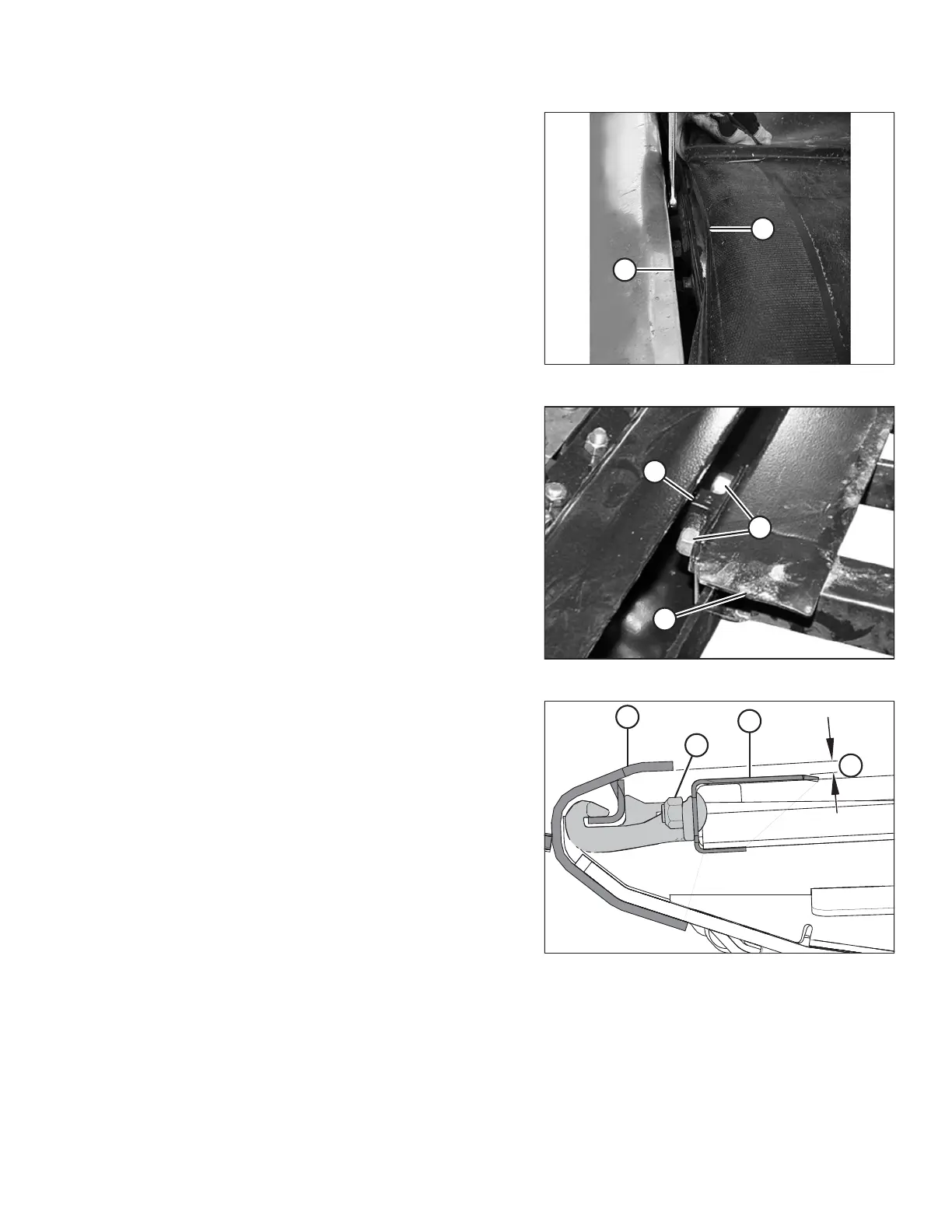

Figure 5.197: Deck Adjustment
5. Lift the front edge of draper (A) past cutterbar (B) to
expose the deck support.
6. Measure and note the thickness of the draper belt.
Figure 5.198: Deck Support
7. Loosen the two lock nuts (A) on deck support (B) ONE
HALF-TURN ONLY.
NOTE:
The number of deck supports (B) is determined by the
header reels: four on single-reel headers, and eight on
double-reel headers.
8. Tap deck (C) to lower the deck relative to the deck
supports. Tap deck support (B) using a punch to raise
the deck relative to the deck supports.
Figure 5.199: Deck Support
9. To create a seal, adjust deck (A) so that clearance (B)
between cutterbar (C) and deck is 1 mm (1/16 in.) plus
the draper thickness as measured in Step 6, page 493.
10. Tighten deck support hardware (D).
11. Recheck gap (B). Refer to Step 9, page 493.
12. Tension the draper. Refer to 5.14.3 Adjusting Draper
Tension, page 488.
MAINTENANCE AND SERVICING
