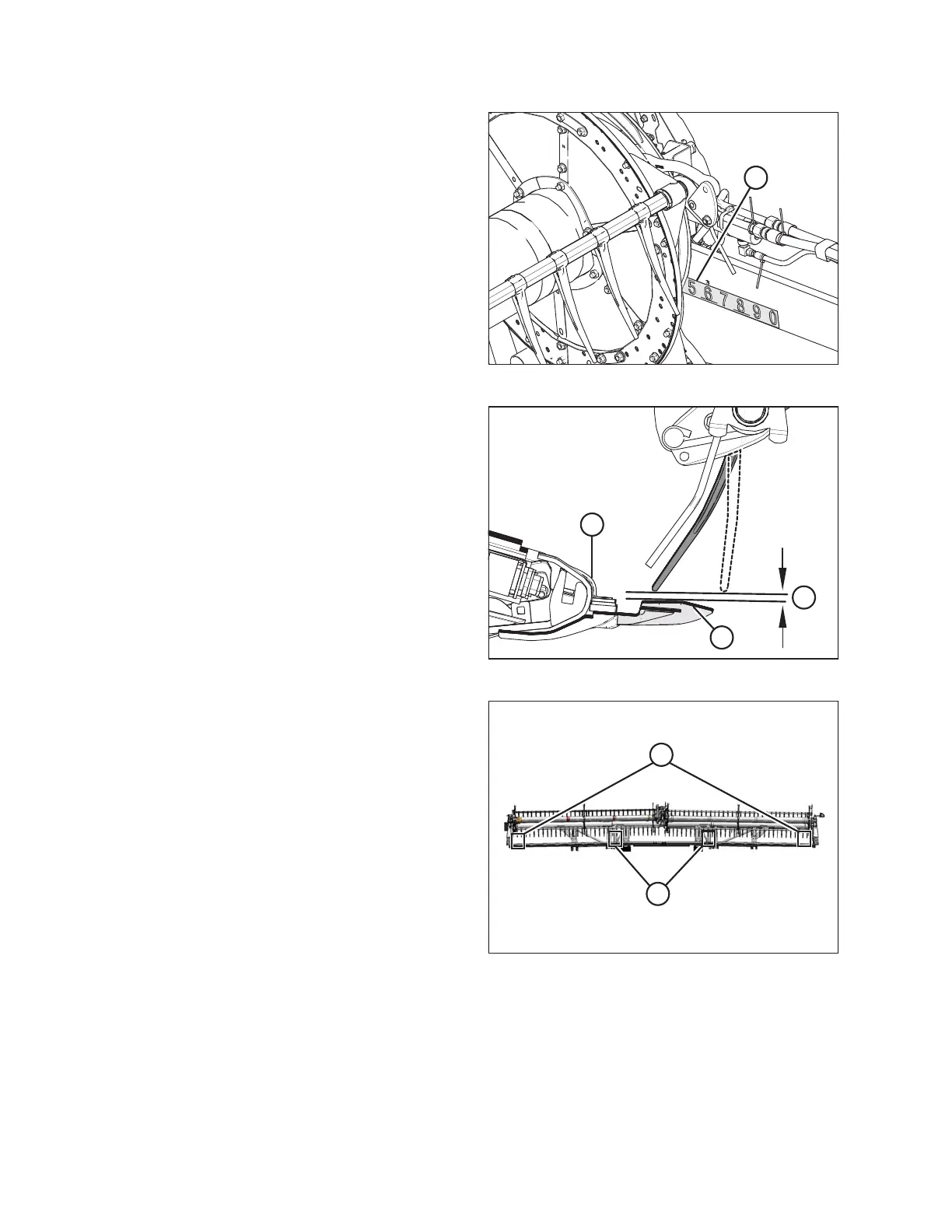

Figure 5.222: Fore-Aft Position
5. Set the fore-aft position to the middle position (5) on the
fore-aft position decal (A).
6. Lower the reel fully.
7. Shut down the engine, and remove the key from the
ignition.
Figure 5.223: Clearance
Figure 5.224: Measurement Locations
8. Measure the clearance (X) between points (C) and (D)
at the ends of each reel (A), and at the flex
locations (B). (Refer to Figure 5.224, page 504 for
measurement locations.)
NOTE:
The reel is factory-set to provide more clearance at the
center of the reel than at the ends (frown) to
compensate for reel flexing.
NOTE:
When measuring reel clearance at the center of a
double reel header, measure the lowest reel.
9. Check all possible points of contact between points (C)
and (D). Depending on the reel fore-aft position,
minimum clearance can result at the guard tine,
hold-down, or cutterbar.
10. Adjust the reel if necessary. Refer to Adjusting Reel
Clearance, page 505.
