214683 55 Revision A

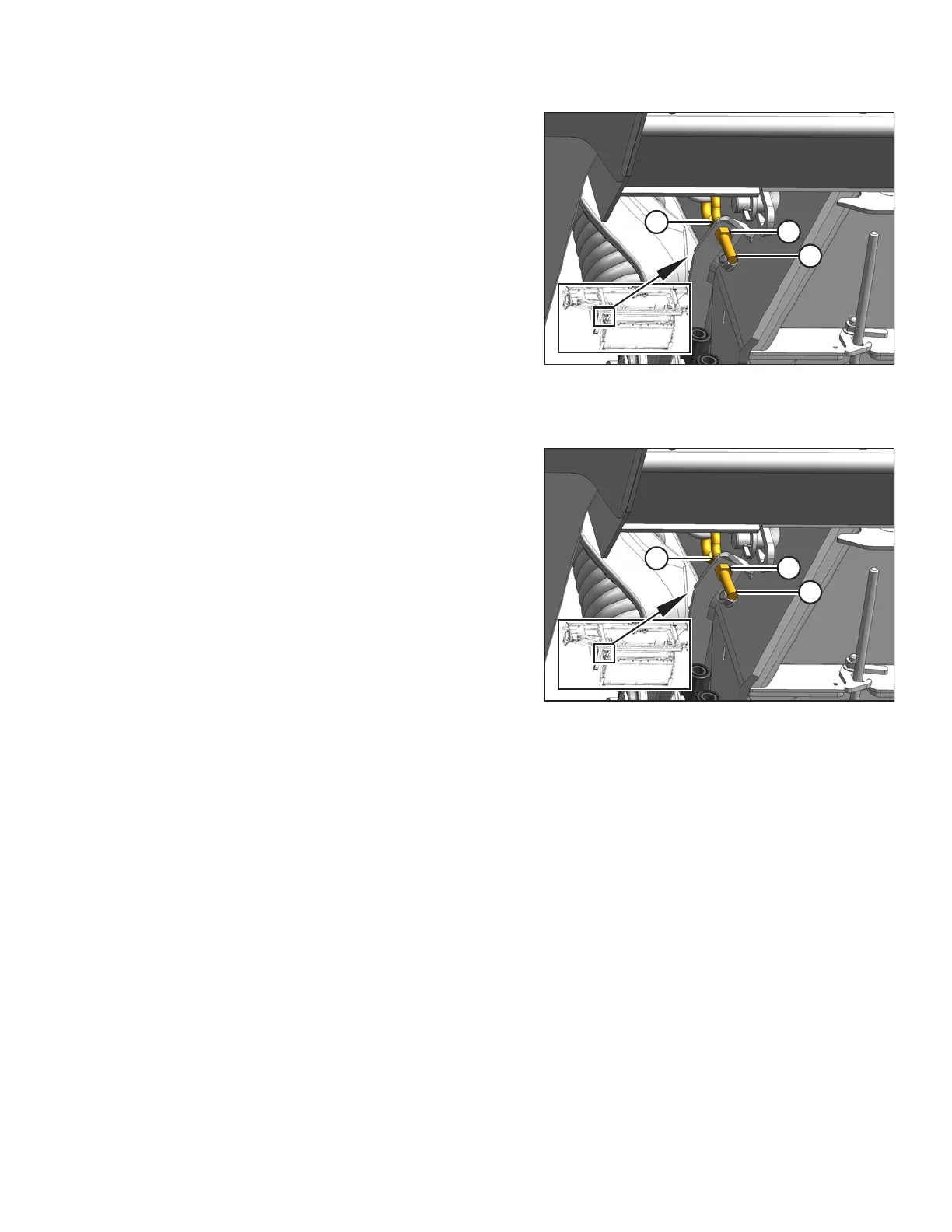

Figure 3.23: Spring Tensioner
4. Check the thread length protruding past the nut (B).
Length should be 22–26 mm (7/8 –1 in.).
If adjustment is required, follow these steps:
Figure 3.24: Spring Tensioner
1. Loosen upper jam nut (A) on spring tensioner.
2. Turn lower nut (B) until the thread (C) protrudes
22–26 mm (7/8–1 in.).
3. Tighten jam nut (A).
4. Repeat Steps 1, page 55 to 3, page 55 on
opposite side.
OPERATION
