Pathway Technical Reference Manual
Proprietary 119 of 190
10.2.2 Safety
The safety limits and parameters can be viewed from Safety tab in the hardware settings
menu. Safety parameters included the limits on duration of stimulus according to temperature,
self-test parameters and parameters for the safety tab displays the software temperature time
limitations which are allowed according to the program safety regulations. In addition, is
presents a list of the self-tested parts, and built-in test (BIT) parameters.
The values in this tab can only be read, and cannot be edited.

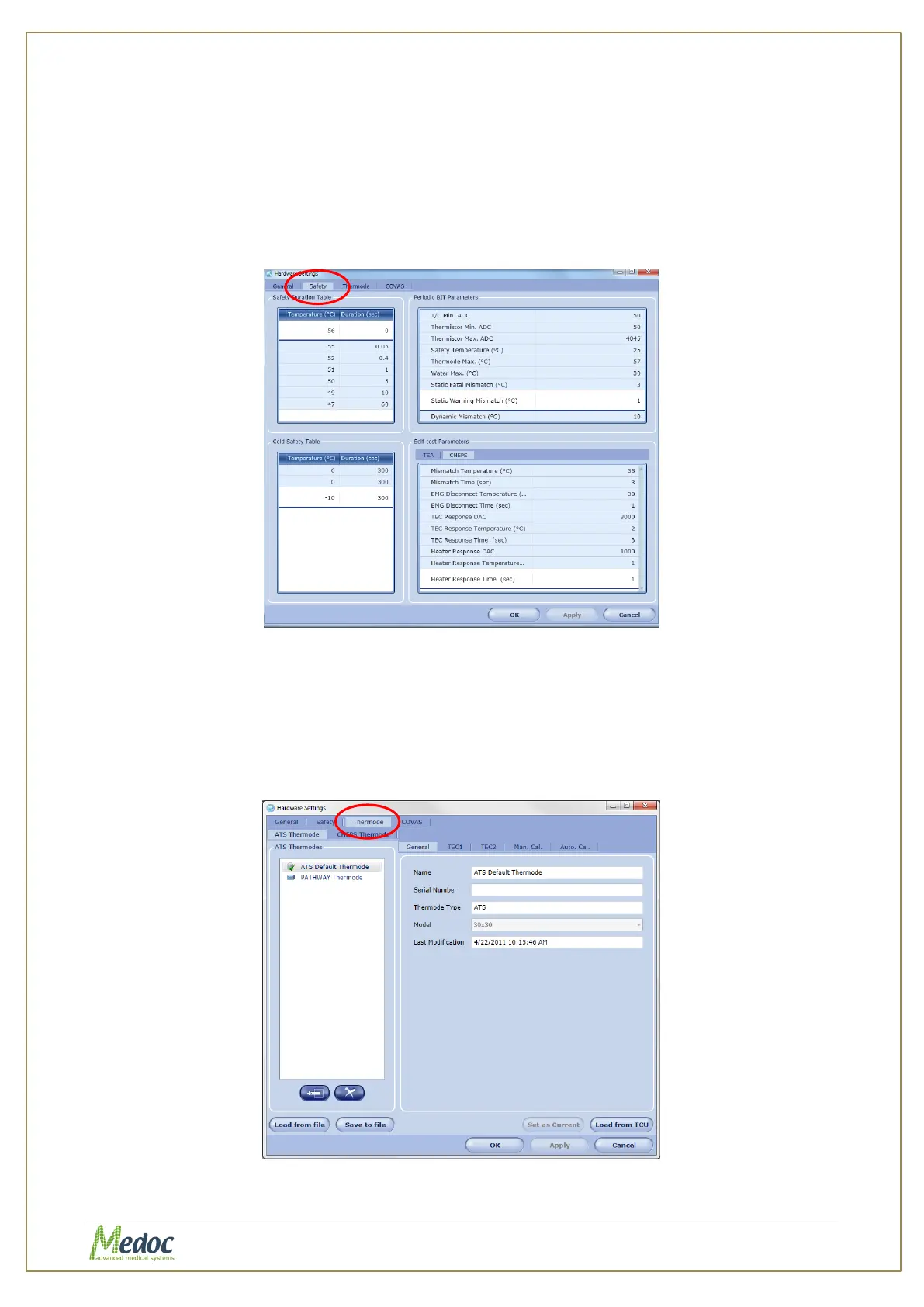

Figure 79: Hardware settings – Safety tab
10.2.3 Thermode
All Thermode management actions including adding or removing Thermode information and
calibration data can be performed from the Thermode tab in Hardware Settings. Refer to the
Thermode Management and Thermode Calibration sections in the Service Manual for further
instructions.
Figure 80: Hardware settings – Thermode tab
