3.4 PATHWAY Electrical Box Back Panel (Internal)

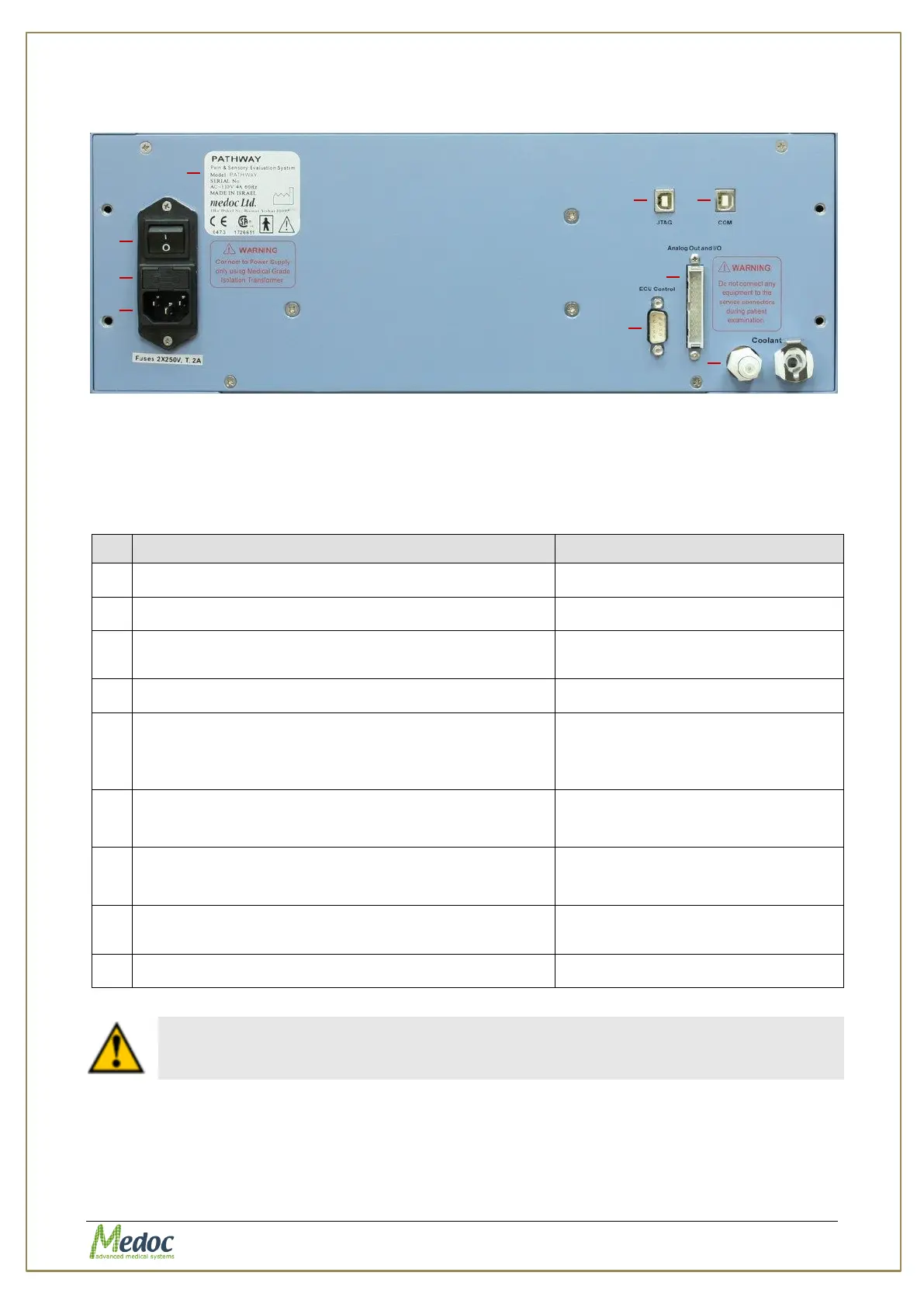

Figure 12: Electrical Box Back Panel
The Electronic Box back panel is accessible from the maintenance door in the back of the
PATHWAY trolley. It contains the following receptacles and controls:
Table 7: PATHWAY Electrical Box Back Panel receptacles
#
Description
Mate with
1
Electrical box power switch
Not applicable
2
Electrical box fuse house
Not applicable
3
Electrical box power inlet
Internal power cord
4
PATHWAY label and serial number
Not applicable
5
JTAG receptacle
 Use for technical maintenance (PATHWAY
technician only)
USB cable
6
Communication port
 Use for communication with PC
USB cable
7
Service receptacle
 Use for 4-bit TTL and analog output
Analog out and I/O flat cable
8
ECU control cable receptacle
Internal communication cable to
cooling unit
9
Electrical box coolant inlet receptacles
Internal coolant hose
Do not connect any equipment to the service receptacle during test subject
examination.
2
1
6
5
8
7
9
3
4
