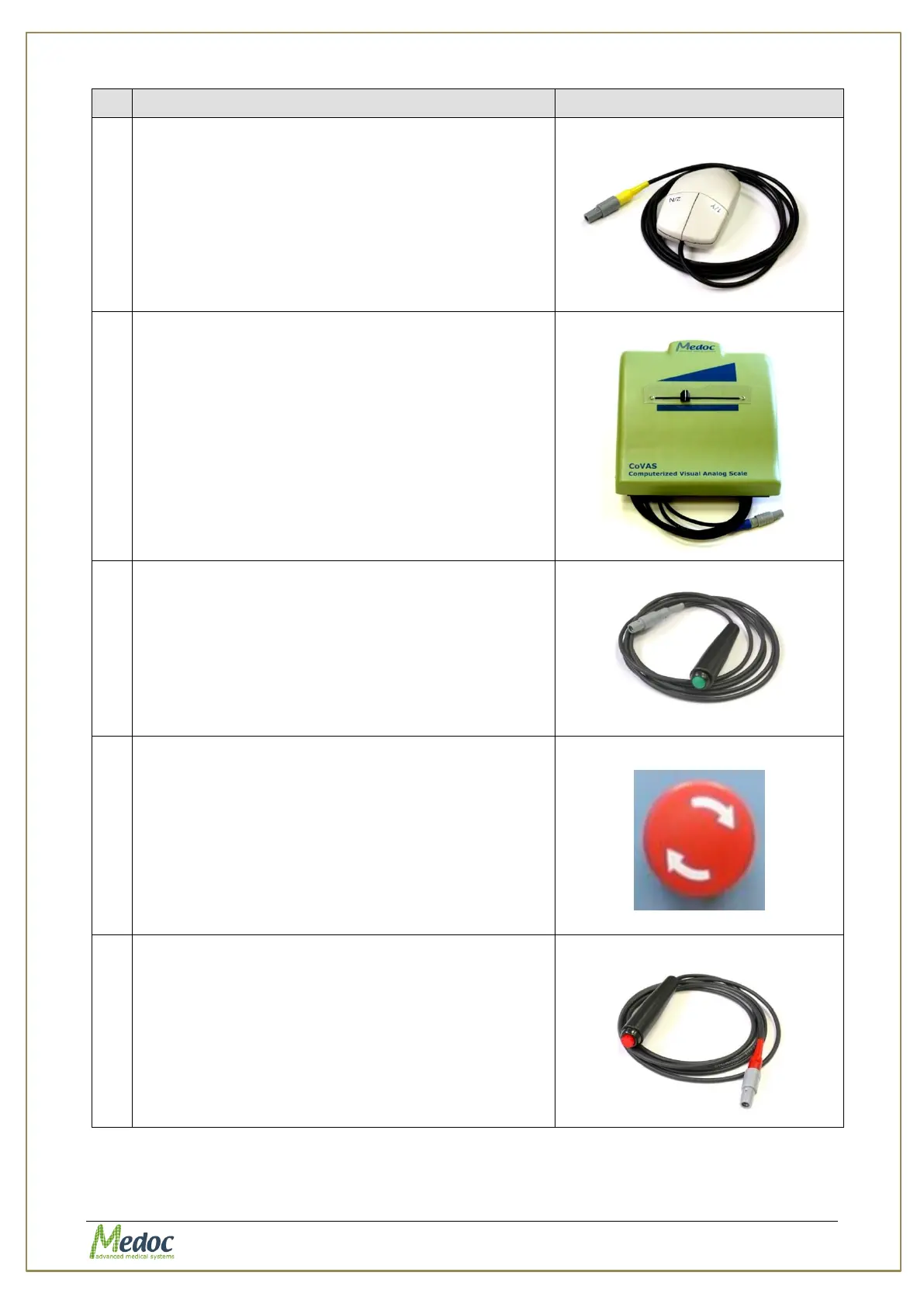

Description
Mate with
9
Response Unit receptacle
 Use for recording patient response during test
10
CoVAS receptacle
 Use for recording patient visual analog scale
during test
11
Manual Trigger receptacle
 Enable to start tests manually by the system
operator
12
Emergency stop button (Panic button)
 Pressing this button during a test in the event
of an emergency enables the operator to
immediately abort the test. After releasing the
pressed Emergency button, the PATHWAY
system will run a self test. A self test is run
automatically after any kind of safety violation
 To release the Emergency button turn it
clockwise
13
Emergency stop (panic button) extended cable
receptacle
 Enables the test subject to immediately cut off
the stimuli, in the event of an emergency
