Pathway Technical Reference Manual
Proprietary 19 of 190
Hardware protection mechanisms include:
 If the Thermode temperature reaches 57C an analog circuit overrides the system and
lowers the temperature gradually.
1.5.3 Thermode Detection
The system automatically detects that a Thermode is missing, and disables it in order to
protect both system and user.
1.6 Equipment Labels, Symbols, Warning Statements and
Abbreviations

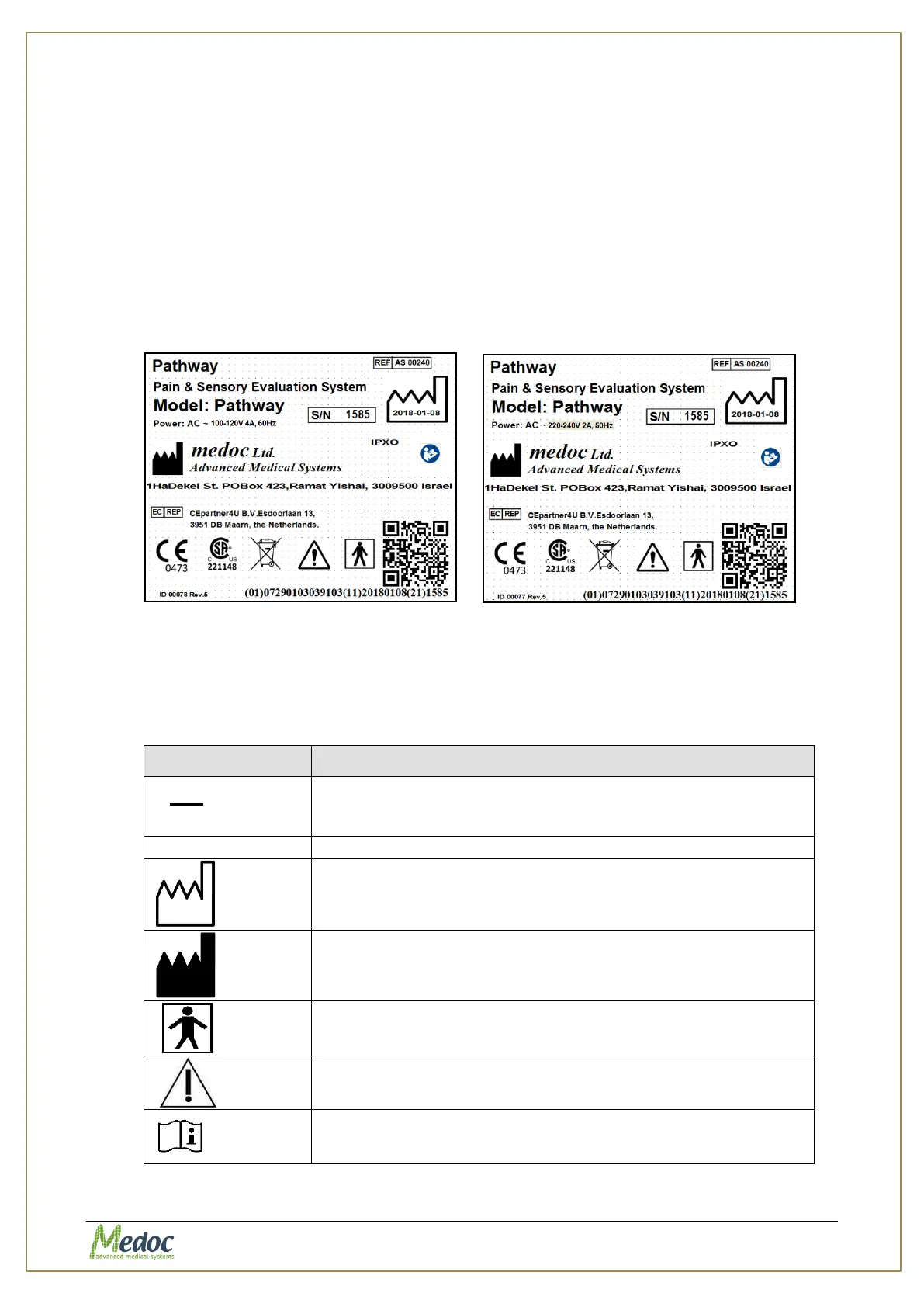

Figure 1: PATHWAY Label 110V
Figure 2: PATHWAY Label 230V
Table 1: Equipment Labels
Equipment Label
Description
I
O
Power switch ON/OFF
COM
Communications connector.
Date of Manufacture (YYYY-MM)
Manufacturer
Degree of protection against electric shock – Applied Part
Type BF.
Warning - Connect the power cord to the power outlet,
according to the local electrical standards.
Refer to Manual
