Pathway Technical Reference Manual
Proprietary 40 of 190
3.3 PATHWAY Electronic Box Front Panel

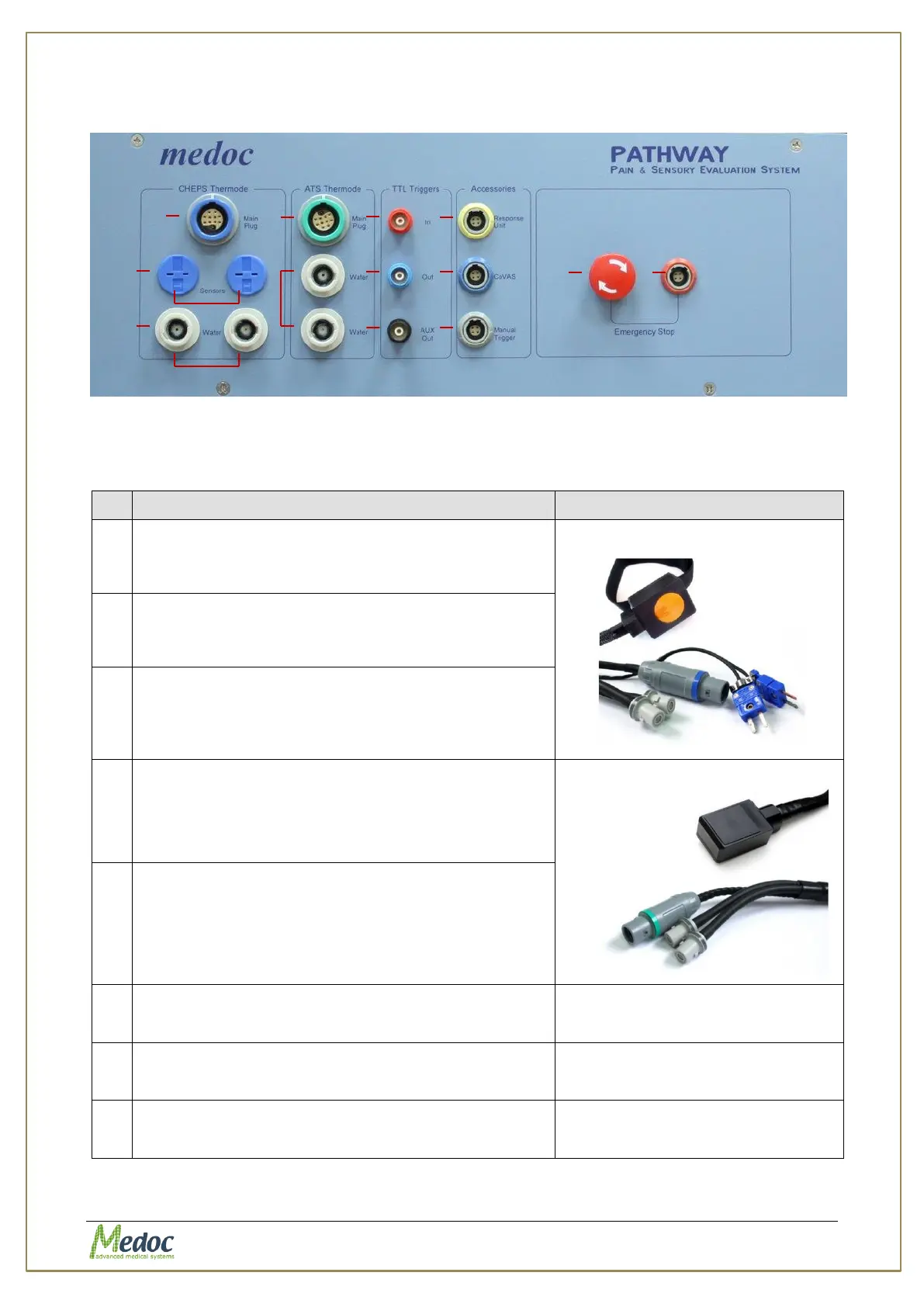

Figure 11: PATHWAY Electronic Box Front Panel
PATHWAY Electrical box front panel contains the following receptacles and controls:
Table 6: PATHWAY Electronic Box Front Panel receptacles
#
Description
Mate with
1
CHEPS Thermode Main receptacle
2
CHEPS Thermode sensors receptacles
3
CHEPS Thermode coolant receptacles
4
ATS Thermode Main receptacle
5
ATS Thermode coolant receptacles
6
TTL IN receptacle
 Use for synchronization with external device
Standard coaxial cable with BNC
connector
7
TTL OUT receptacle
 Use for synchronization with external device
Standard coaxial cable with BNC
connector
8
TTL AUX receptacle
 Use for synchronization with external device
Standard coaxial cable with BNC
connector
1
2
3
4
5
1
2
3
4
5
6
7
8
9
1
0
1
1
1
2
1
3
