Pathway Technical Reference Manual
Proprietary 143 of 190

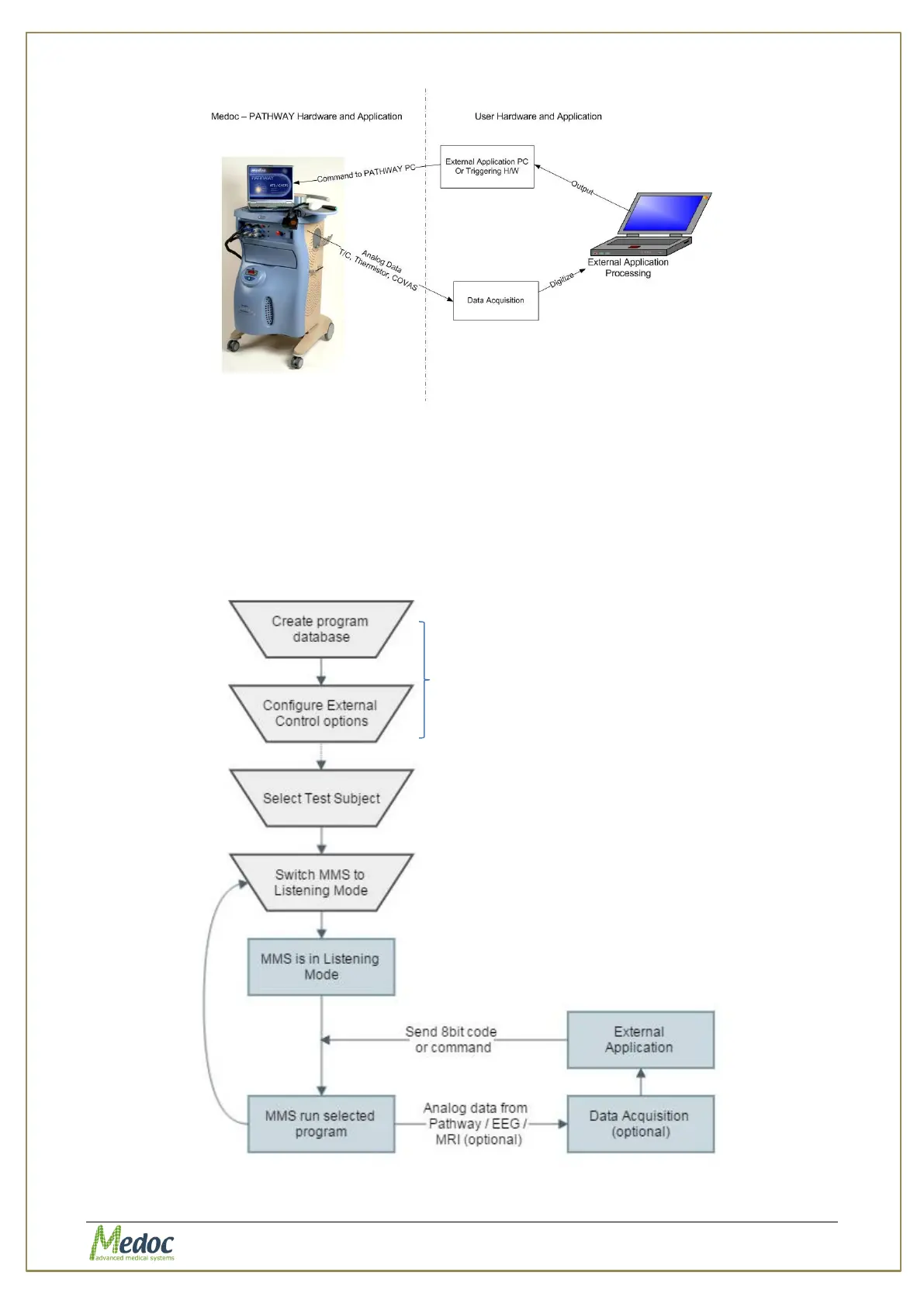

Figure 98: External Control Interface Closed Control Loop Example
14.2.3 Typical Workflow
The diagram below illustrates a typical workflow, using the Closed Control mode. Medoc Main
Station receives 8-bit words (parallel commination) or commands (TCP socket communication)
which determine which test program to use. The external application decides which test
program to send based on input it receives from the Pathway (analog output) or other sources
such as EEG or MRI systems.
Figure 99: External Control Workflow Example
