Pathway Technical Reference Manual
Proprietary 71 of 190
- Manually define the next sequence: If this option is selected, the operator will
receive the following dialog window at the end of the sequence, allowing him to specify
the next sequence he would like to perform:

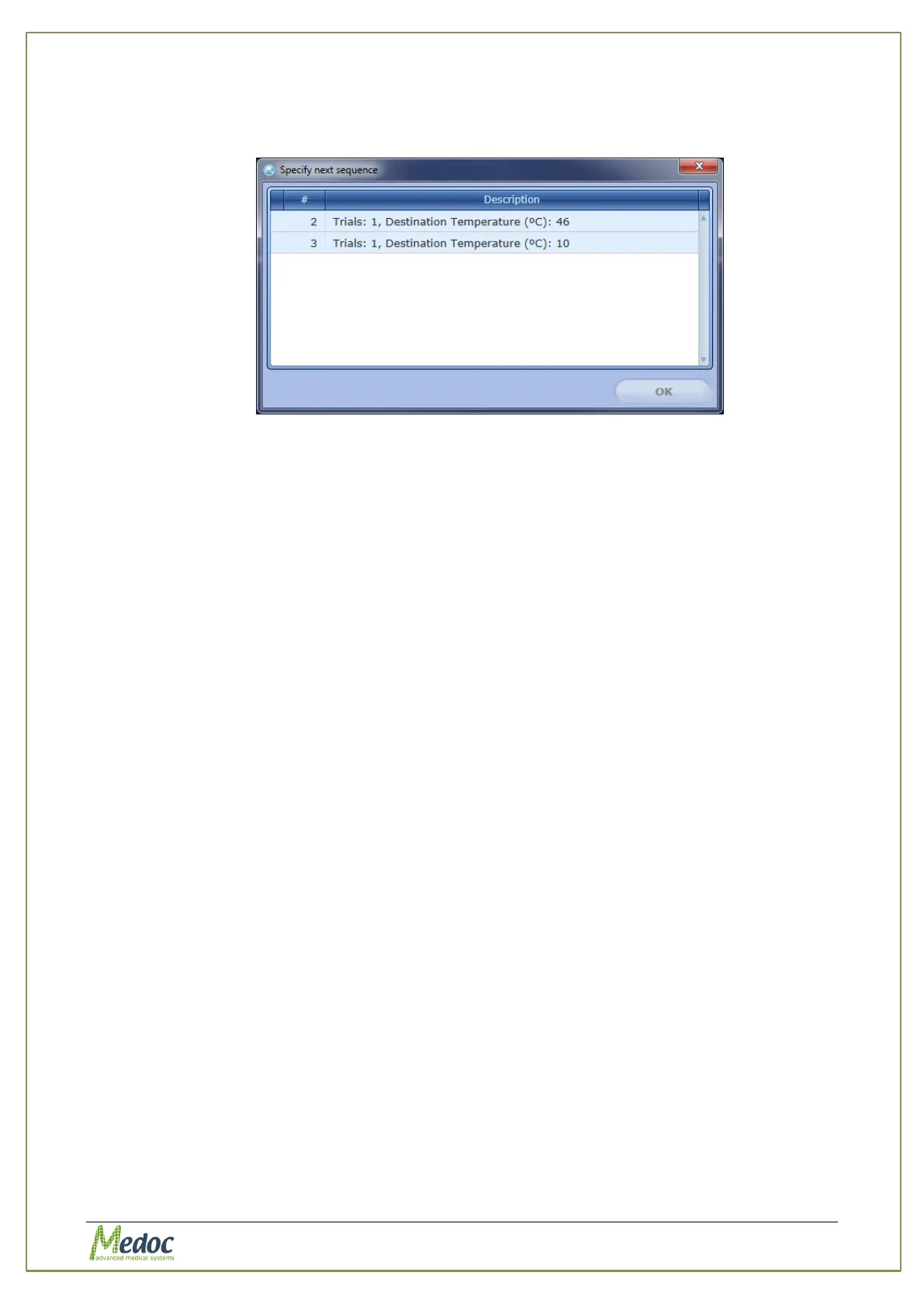

Figure 36: Manual Next Sequence Definition
Note: this option is available if the program contains more than 2 sequences;
otherwise this option will be dimmed.
- If both checkboxes are unchecked the sequences order will be according to their
order in program editor (sequence number)
7.7 Program Details
The following sections described the program details for each of the applicable methods.
7.7.1 Ramp and Hold
In this method, the temperature rises (or falls) to a predetermined destination, at a
predetermined rate, remains there for a predetermined duration, and proceeds to the next
destination. For an example graph and an explanation of the method, refer to section 2.8.1,
page 32.
