Pathway Technical Reference Manual
Proprietary 162 of 190
Follow the instructions below in order to fill the PATHWAY ECU reservoir:
1. Open the ECU service door.

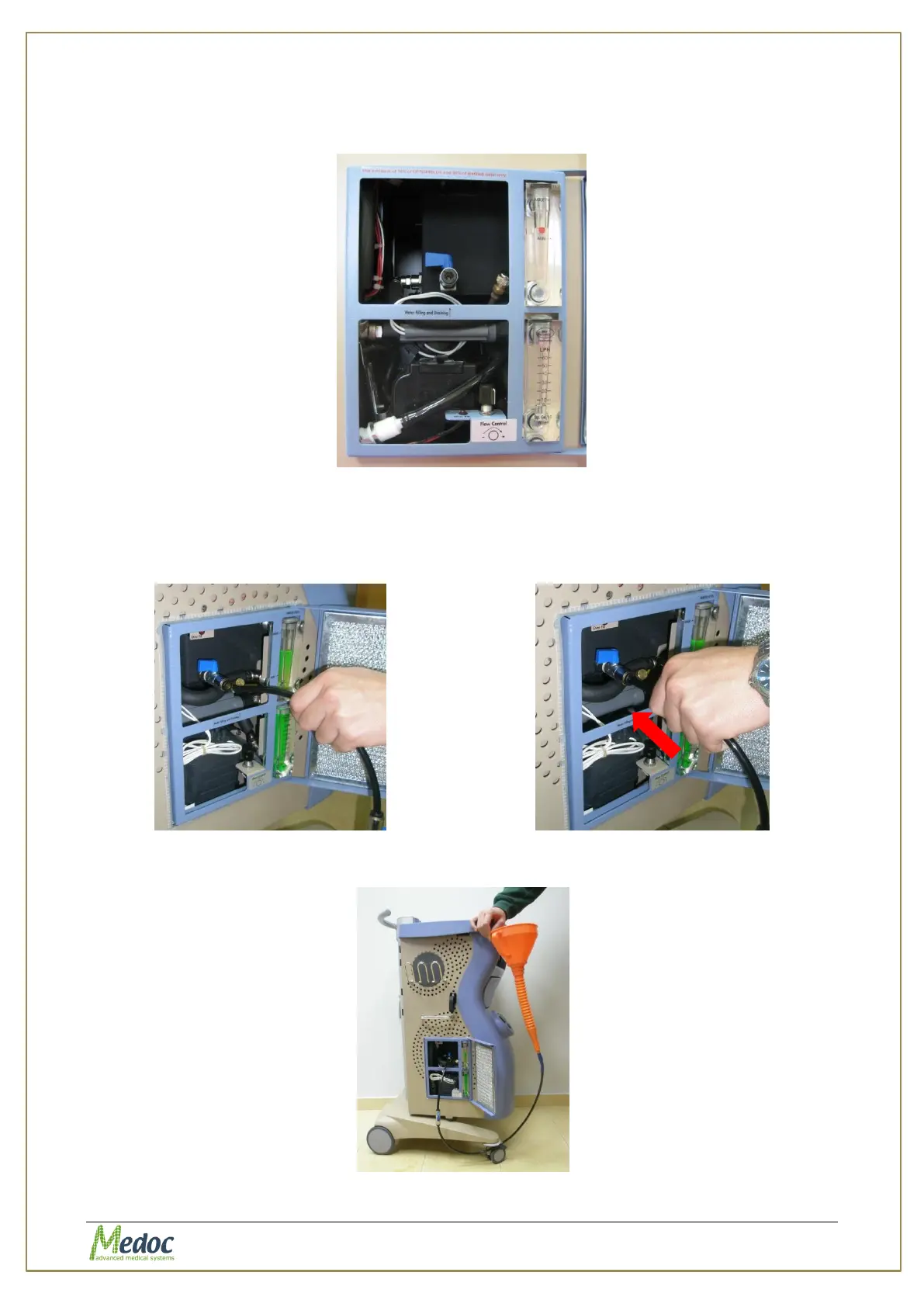

Figure 117: Service Door is Open
2. Connect the hose and the funnel to the filling tap in the service panel and adjust it into the
filling tap, as shown below. Then hold the funnel up to prevent coolant from spilling over.
Figure 118: Connecting hose
Figure 119: Adjusting hose into tap
Figure 120: Holding the funnel up
