Implementation
Microsemi Proprietary and Confidential UG0677 User Guide Revision 9.0 106

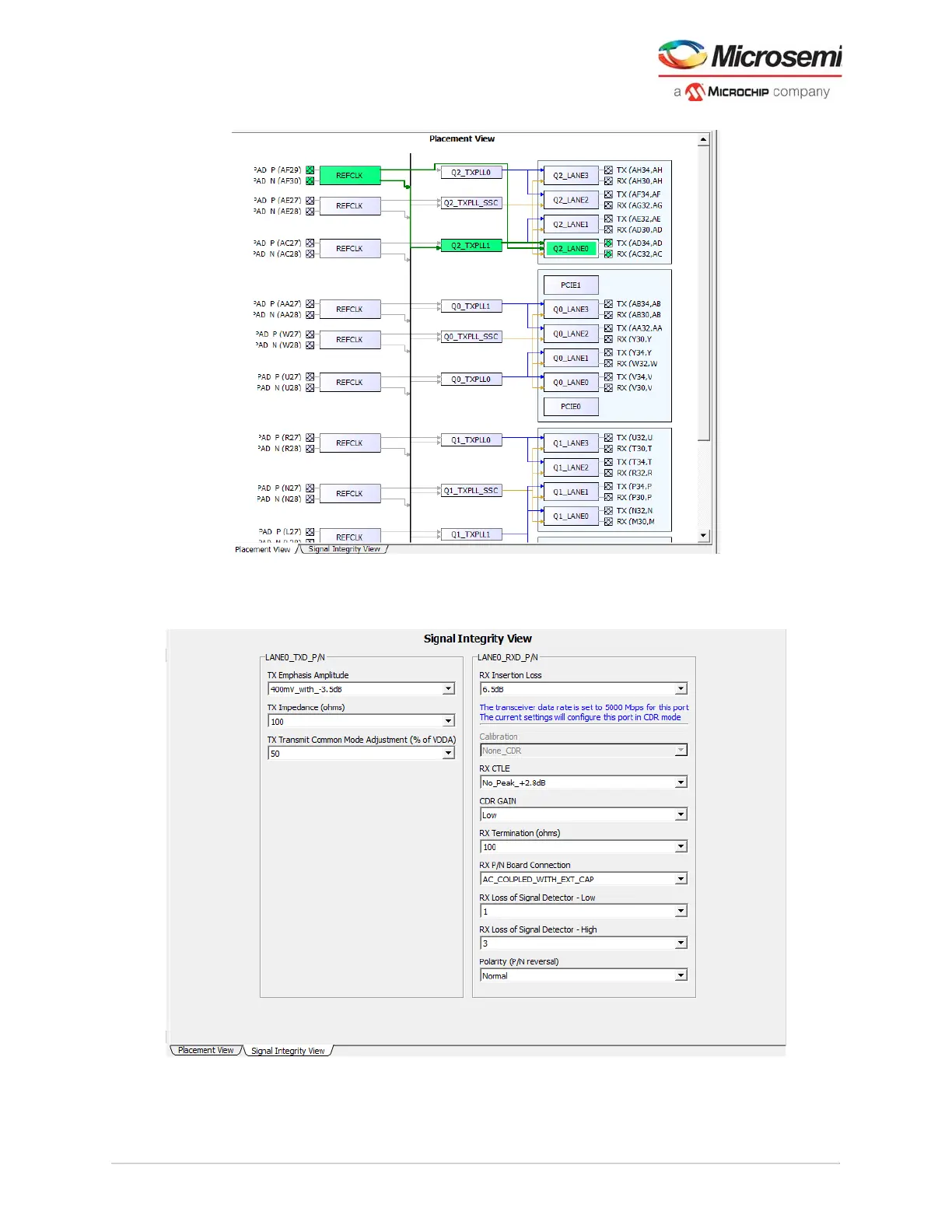

Figure 88 • XCVR Placement Tab
The following figure shows the XCVR Signal Integrity View tab. When user selects lane in Left Panel,
the user can view and change the signal integrity parameters for the Rx and Tx transceiver ports.
Figure 89 • XCVR Signal Integrity Tab
For more information about tuning the transceiver signal integrity, see Signal Integrity Conditioning,
page 108.
