Implementation
Microsemi Proprietary and Confidential UG0677 User Guide Revision 9.0 82
4.1.1 Transceiver Reference Clock Configurator
The Transceiver Reference Clock Configurator is used to build the correct reference clock input to the
transceiver and to the Tx PLL. The user can pick the input type and various input options.
To initiate the Reference Clock Configurator, perform the following steps:
1. Access the Transceiver Reference Clock cores under PolarFire Features from the Catalog
window, as shown in the following figure.

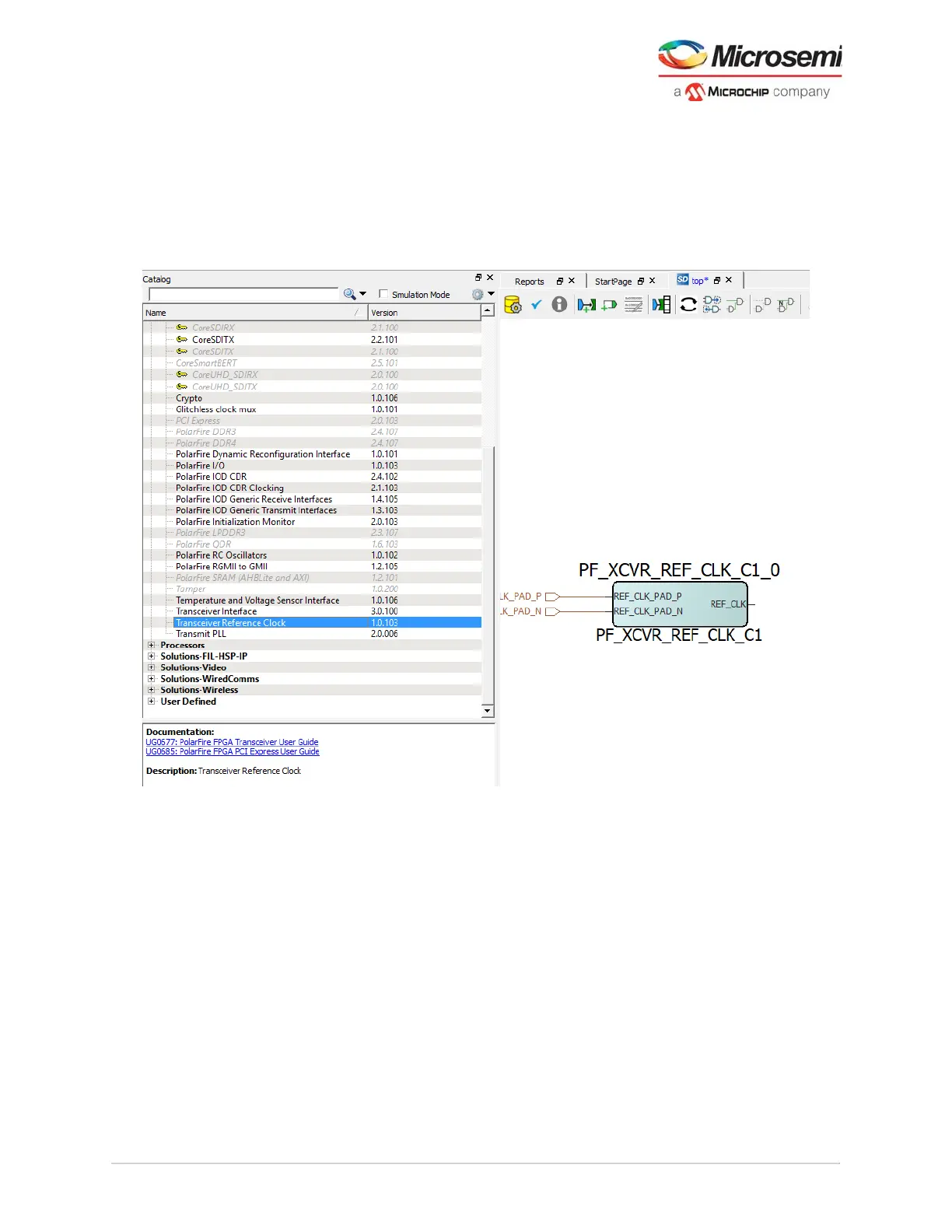

Figure 56 • Transceiver Reference Clock Selection from Catalog
2. Double-click each PF_XCVR_REF_CLK block from the catalog to launch the configurator. A GUI
allows the selection of the related reference clock properties.
