Microchip Technology Microsemi UG0677 - Figure 57 Transceiver Reference Clock Configurator GUI; Table 26 Transceiver Reference Clock Configurator GUI Options

Implementation
Microsemi Proprietary and Confidential UG0677 User Guide Revision 9.0 83

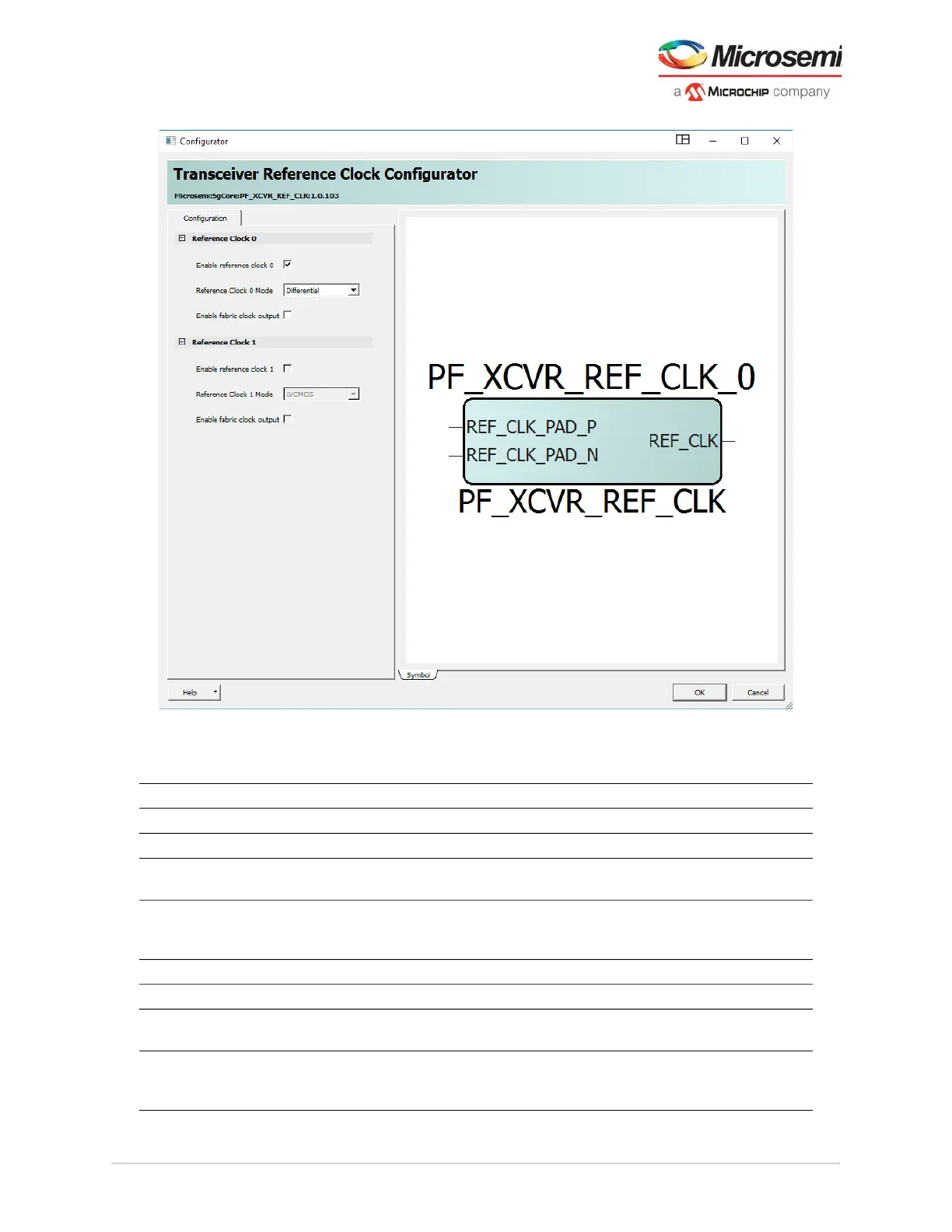

Figure 57 • Transceiver Reference Clock Configurator GUI
The following tables lists transceiver reference clock configurator GUI options.
Table 26 • Transceiver Reference Clock Configurator GUI Options
Options Default Details
Reference Clock 0 configuration
Enable reference clock 0 Enable and disable Enabled Checked = enabled
Reference Clock 0 Mode LVCMOS, voltage
reference, and differential
Differential
Enable fabric clock output Enable and disable Disabled Checked = enabled
When enabled, a port is
exposed for fabric routing.
Reference Clock 1 configuration
Enable reference clock 1 Enable and disable Disabled Checked = enabled
Reference Clock 1 Mode LVCMOS and voltage
reference
LVCMOS
Enable fabric clock output Enable and disable Disabled Checked = enabled
When enabled, a port is
exposed for fabric routing.
