Implementation
Microsemi Proprietary and Confidential UG0677 User Guide Revision 9.0 86
4.1.2 Transmit PLL Configurator
The Transceiver Transmit PLL Configurator is used to build the correct transmit PLL to the transceiver.
The user can pick from many of the PLL options used for the transceiver based on the application.
To initiate the Transceiver Transmit PLL Configurator, perform the following steps:
1. Access the Transmit PLL module under PolarFire Features from the Catalog window, as shown in
the following figure.

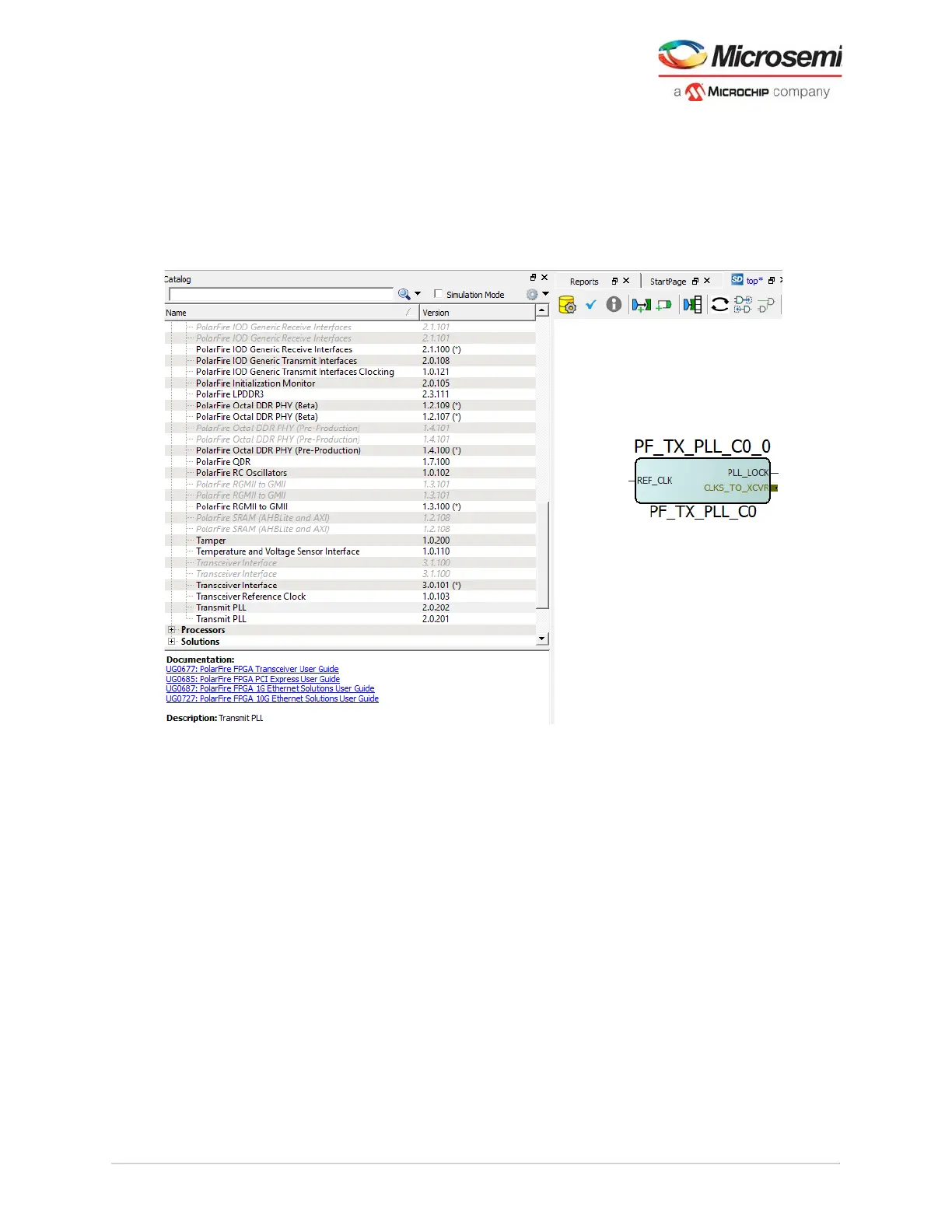

Figure 63 • Transceiver Transmit PLL Selection from Catalog
