Review Events Review Page
TM80 Telemetry Monitor Operator's Manual 11 - 7
â—† Parameter value at the event trigger time. HR value is displayed when a
physiological alarm is triggered.
â—† Different color blocks are displayed on the left of each event to indicate dif-
ferent event types. For the meaning of each color block, refer to "Example
Tabular Trends Review Page" on page 11 - 2.
â—† The number of asterisk symbols before an event indicate alarm priority as
described in "Alarm Indicators" on page 6 - 3.
11.3.3 Example Event Details Page
After selecting the desired event overview area, you can view the event details.
â– For manual events, you can view all the monitored waveforms 16 seconds before
and after the event trigger time and all the measurement numerics at the event
trigger time.
â– For alarm events, you can view event-related waveforms 16 seconds before and
after the event trigger time and all the measurement numerics at the event trigger
time.

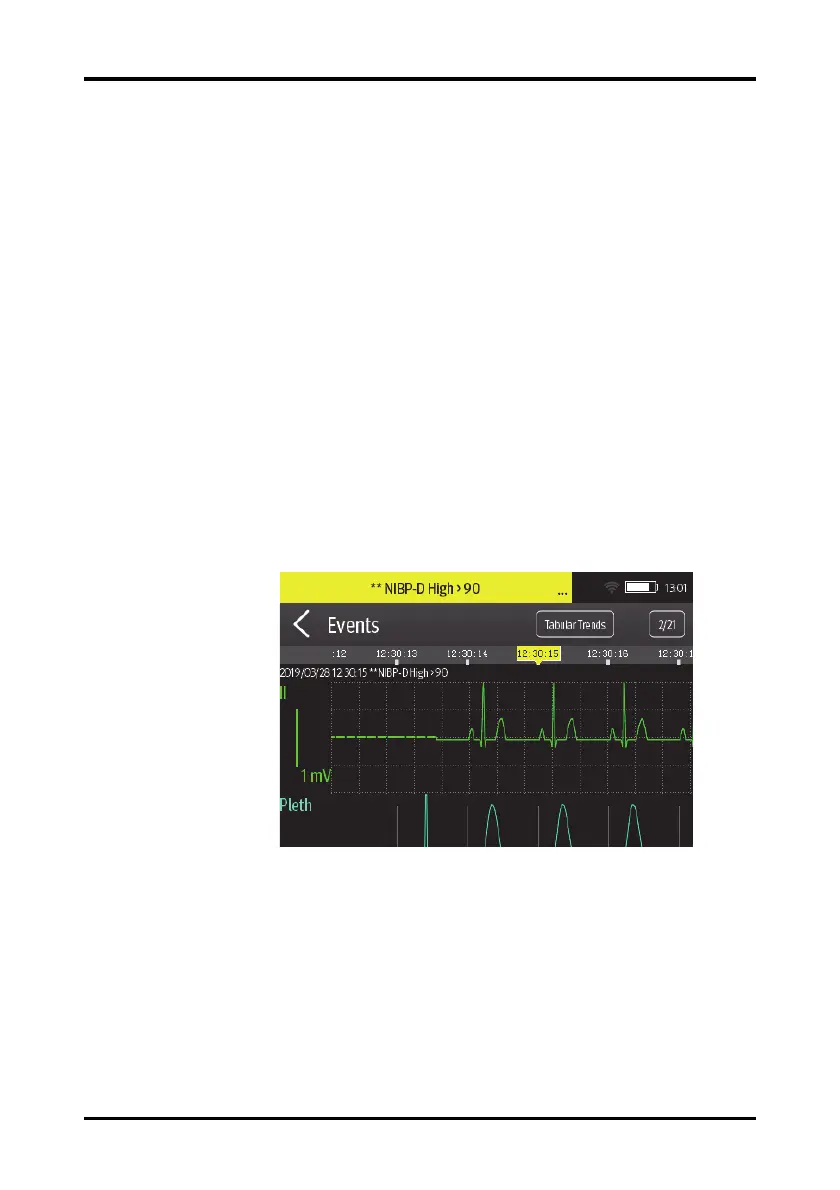

The following figure is for reference only.
The event trigger time is marked in a colored block along the timeline at the top of the
event details page. Different color blocks indicate different types of events:
â– Red: high priority alarm event
â– Yellow: medium priority alarm event
â– Cyan: low priority alarm event
â– Green: manual event
â– White: operation-related event
