11.2 Slimstack Actuator Assembly

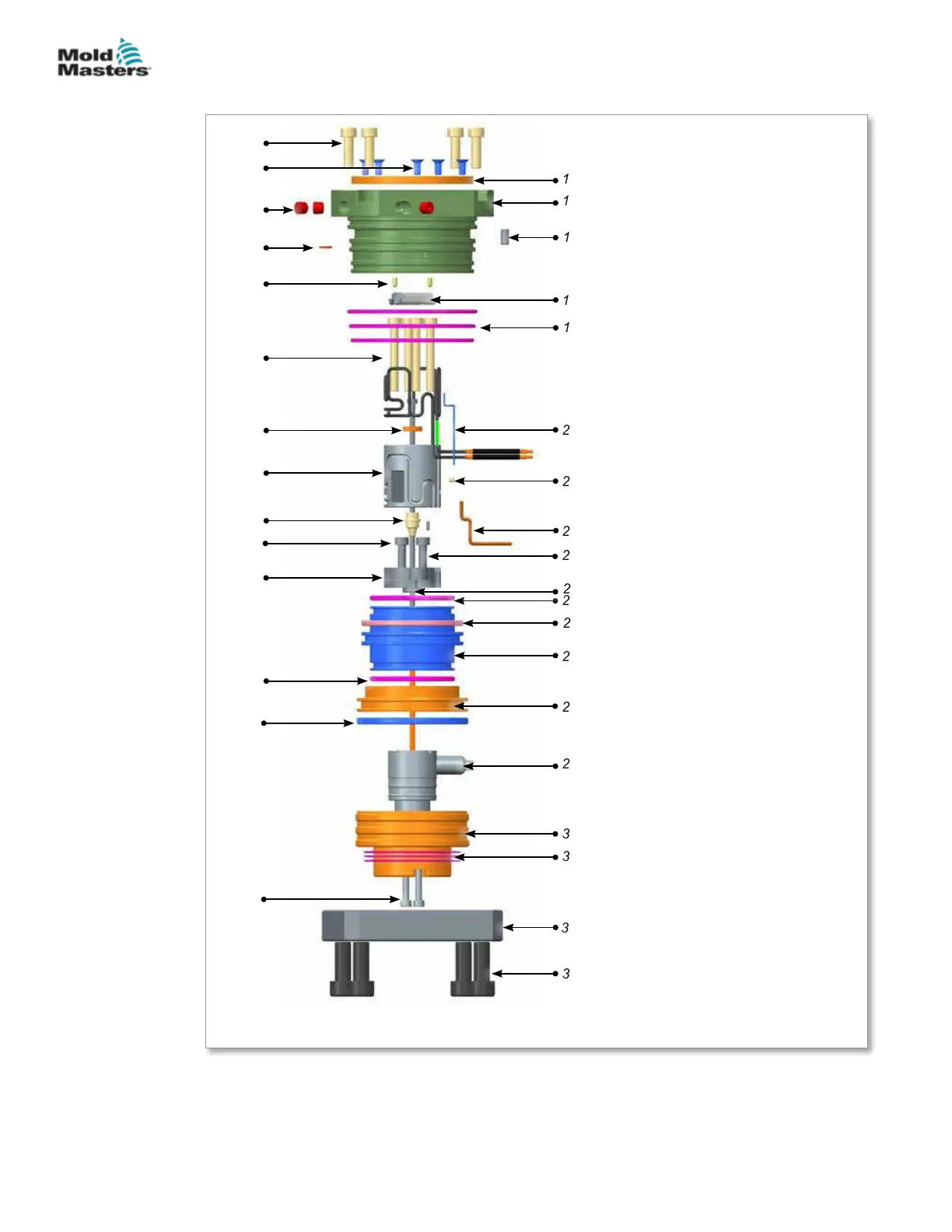

Figure 11-1 Slimstack actuator assembly
1. Socket head cap screw
2. O-ring
3. O-ring
4. Valve bushing
5. Socket head cap screw
6. Valve pin guide
7. Inline actuator heated body
8. Inlet seal
9. Socket head cap screw
10. Set screw
11. O-ring
12. Pressure plug
13. Flat head cap screw
14. Socket head cap screw
15. Titanium locating ring
16. Outer body
17. Dowel pin
18. O-rings
19. Valve pin holder
20. Ungrounded thermocouple
21. Set screw
22. Ground wire
23. Dowel pin
24. Valve pin
25. O-ring
26. O-ring
27. Piston top
28. Piston bottom
29. Nozzle
30. Nozzle retainer
31. Disc springs
32. Custom supporting plate
33. Socket head cap screw
10
5
9
8
7
6
11
4
3
12
2
1
13
14
15
17
18
19
20
21
16
22
23
24
25
26
27
28
29
30
31
32
33
11-2
