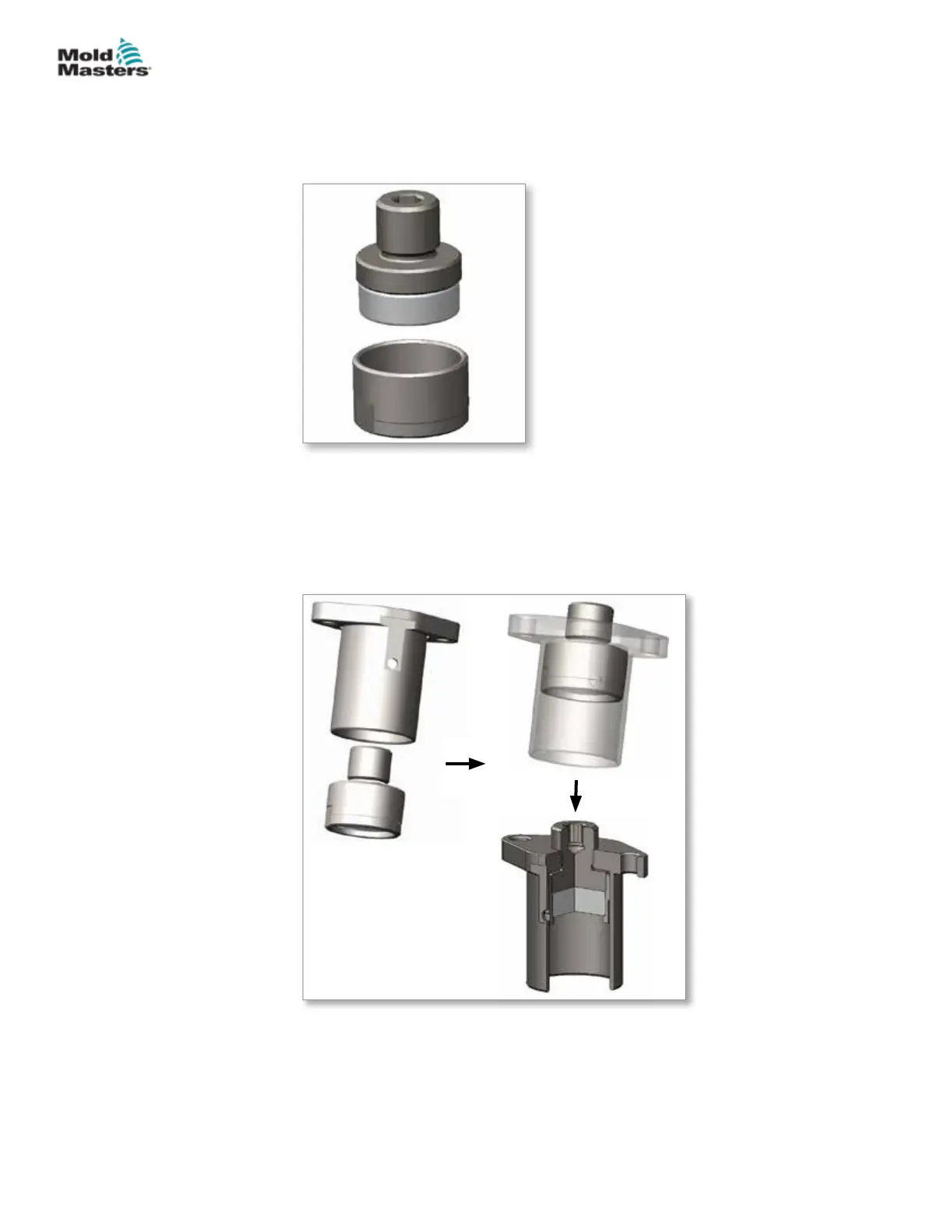

14.6.4 Assemble the Magnetic Retainer to Magnet Holder
1. Hold the magnet assembly in your hand.
2. Use a 5 mm (0.2 in.) hex key and assemble the magnet retainer to the
magnet holder with a torque of 27 to 30 Nm (20 to 22 lbf-ft).
14.6.5 Place the Magnet Holder and Magnet into the
Housing
1. Install the magnet holder and magnet into the housing.
2. Use a 5 mm (0.2 in.) hex key and rotate the magnet holder in a counter-
clockwise direction until the threaded part protrudes.
