12.8 Disassembly
WARNING
Ensure the lifting eyebolt, lifting chain and crane are rated to support the
weight of the mold.
WARNING
-
HIGH VOLTAGE
Ensure that all power to the system is disconnected before starting the
disassembly procedure. Failure to do so may result in serious injury or
death.
WARNING
-
HOT SURFACES
Extreme heat. Avoid contact with heated surfaces. Use appropriate
protective clothing. Failure to do so can cause serious injury.
CAUTION
Do not use the linear servo drive to retract or extract the rod until the
system reaches the internal hard stop position or the actuator may be
permanently damaged.
Ensure that any cables or attachments do not become damaged during this
process. Damaged cables can cause a permanent failure of the motor.
CAUTION
12.8.1 SE40-20 and SE40-20C Models:
1. Disconnect the water lines, if applicable.
2. Heat the system to allow any plastic to become soft.
3. Remove the four SHCSM6X25 mounting screws. See Figure 12-9.

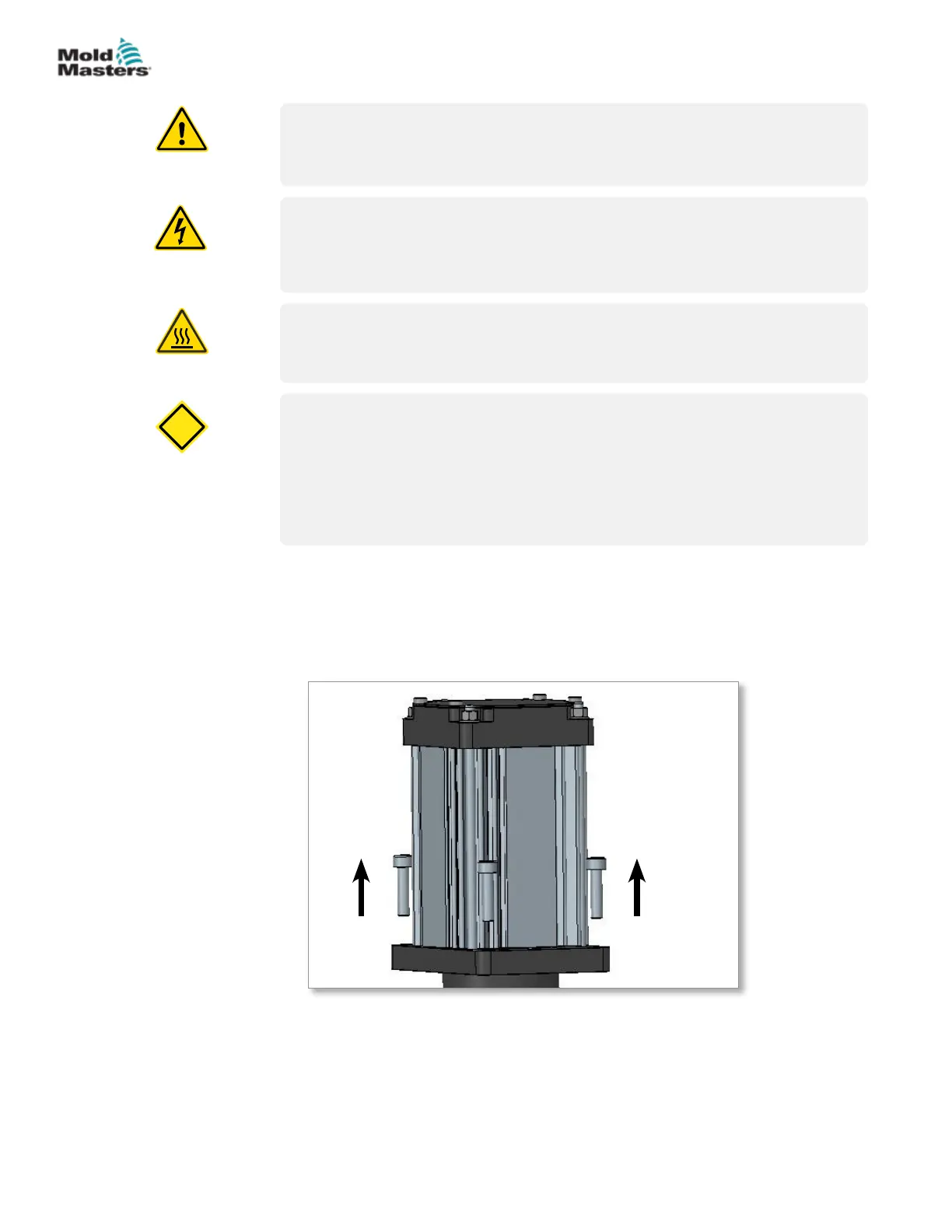

Figure 12-9 Remove the four mounting screws
4. Pull motor up until the valve pin is free to disengage.
