b) For the SE20-15 model:
Attach to the actuator plate with two SHCSM5X155. Torque to 2.3 Nm
[1.7 ft-lbs]. See Figure 12-7.
IMPORTANT
The SE20-15 model of the SeVG Plus actuator has four screws on the top
of the assembly. Use the SHCSM5X155 mounting screws. DO NOT use the
two assembly screws marked with the dye spotting blue compound to
attach the actuator. See Figure 12-8.

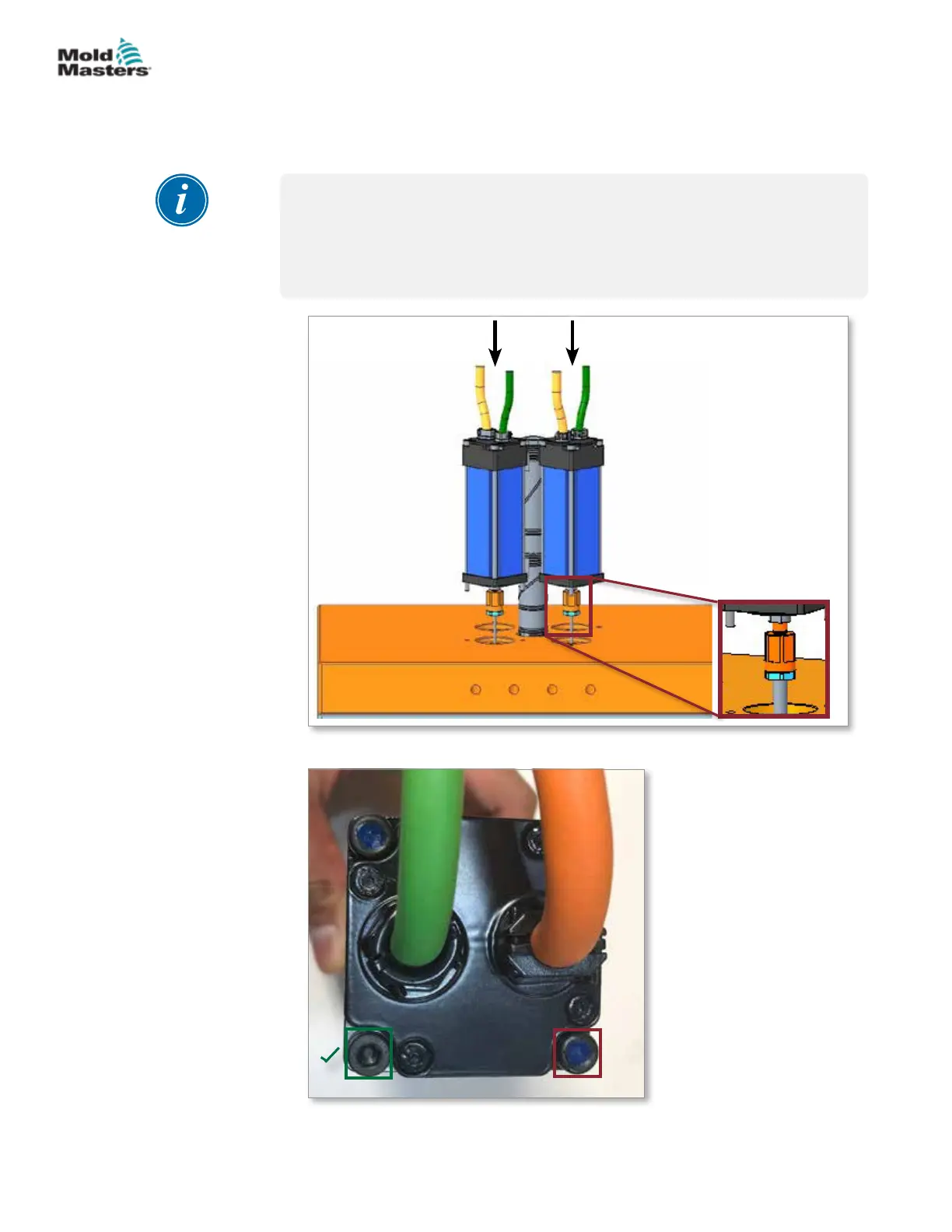

Figure 12-7 Install the SE20-15 actuator
×
Figure 12-8 Use the correct screws
Install the Motor and Valve Pin Assembly - continued
12-10
© 2020 Mold-Masters (2007) Limited. All Rights Reserved.
SEVG PLUS ACTUATOR
Hot Runner User Manual
