4.5.4 Centi or Deci System with MasterSHIELD
Technology
IMPORTANT
Figure 4-6 highlights the MasterSHIELD components within a thermal gate
cast-in system.

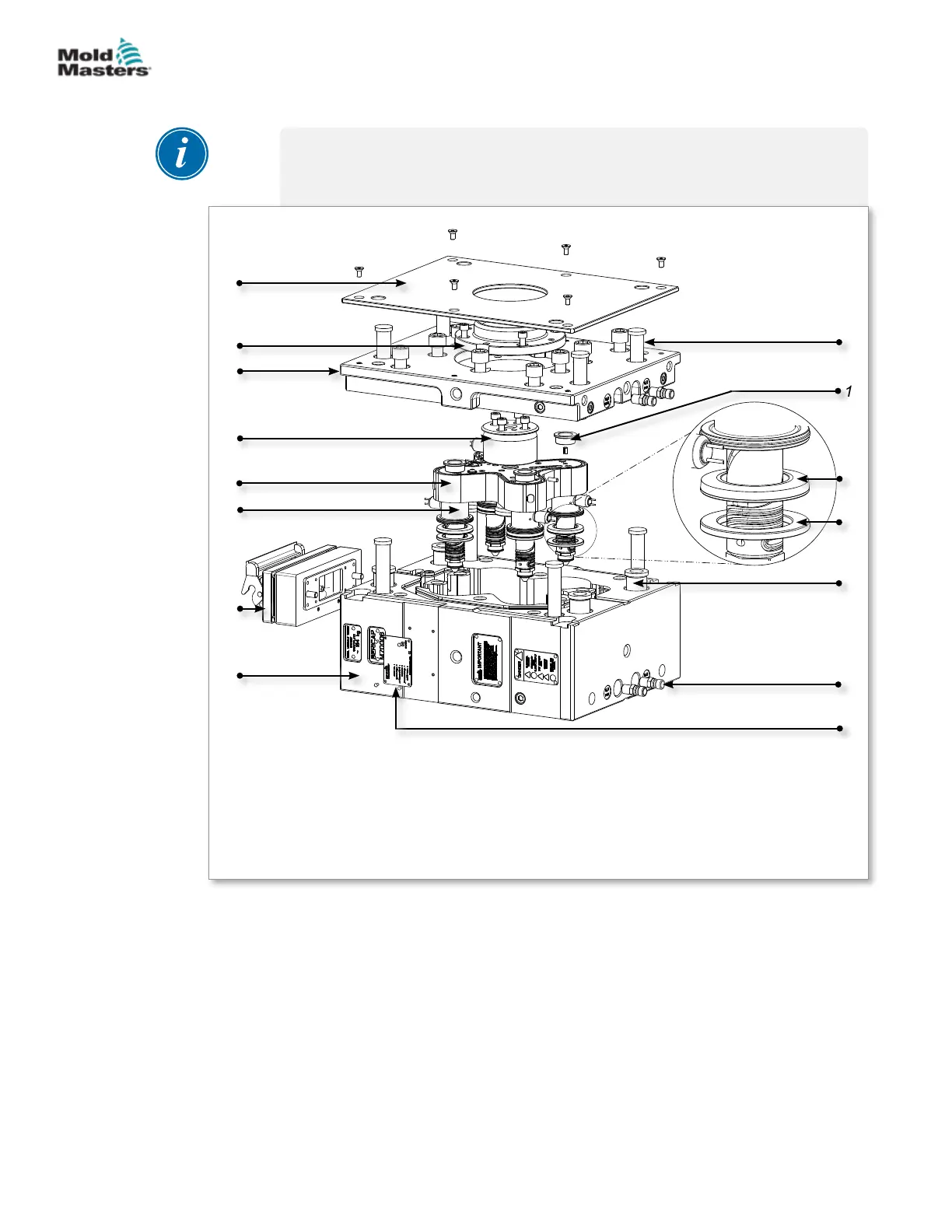

Figure 4-6 System with MasterSHIELD technology and thermal gating
2
3
4
1
5
6
7
8
15
14
13
12
11
10
9
1. Insulation board
2. Locating ring
3. Top clamp plate
4. Center heater
5. Manifold
6. Nozzle
7. Electrical box
8. Manifold plate
9. Name plate
10. Jiy plugs
11. Leader bushing
12. Hardened washer
13. Disc spring
14. Support pad
15. Leader pins
4-7PREPARATION
