19.4.8 Melt-CUBE Design B: Assemble the Melt-CUBE
CAUTION
Follow these instructions closely to prevent damage to the Melt-CUBE or
the cavity block.
This procedure must be done with the Melt-CUBE at room temperature,
between 10°C and 40°C (50°F and 104°F).
CAUTION

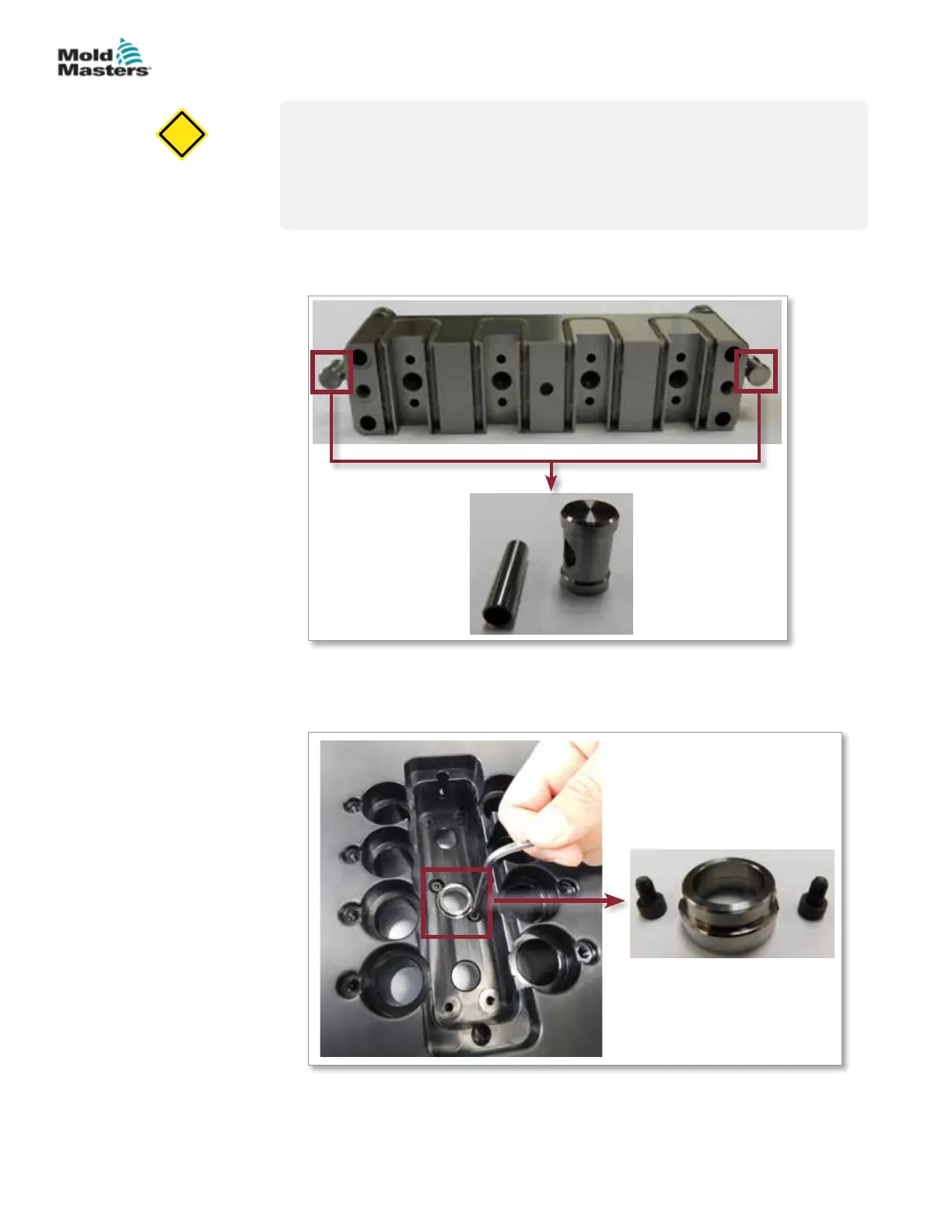

1. Install the anti-rotation dowel into each end of the Melt-CUBE. See Figure
19-17.
Figure 19-17 Install the anti-rotation dowel
2. Install the Melt-CUBE center locator into the bottom of the cavity block
and nger tighten. See Figure 19-18.
Figure 19-18 Install the center locator
19-25MELT-CUBE SYSTEMS
Hot Runner User Manual
