12.4.3 SE20-15 Actuator - Non Cooled
CAUTION
For the non cooled models of the SeVG Plus actuator, the maximum
operating temperature for the actuator plate and the top spacer plates is
80°C (175°F).
Ensure that the SeVG Plus actuator is not dropped at any time, as damage
to its connectors and internal parts may lead to the failure of the actuator.
CAUTION
2
1
3 4
5
7
1. Valve pin
2. Valve pin holder (bottom)
3. Valve pin holder (top)
4. Motor locating spigot
5. Motor locating ange
6. Motor
7. SHCSM5X155
6

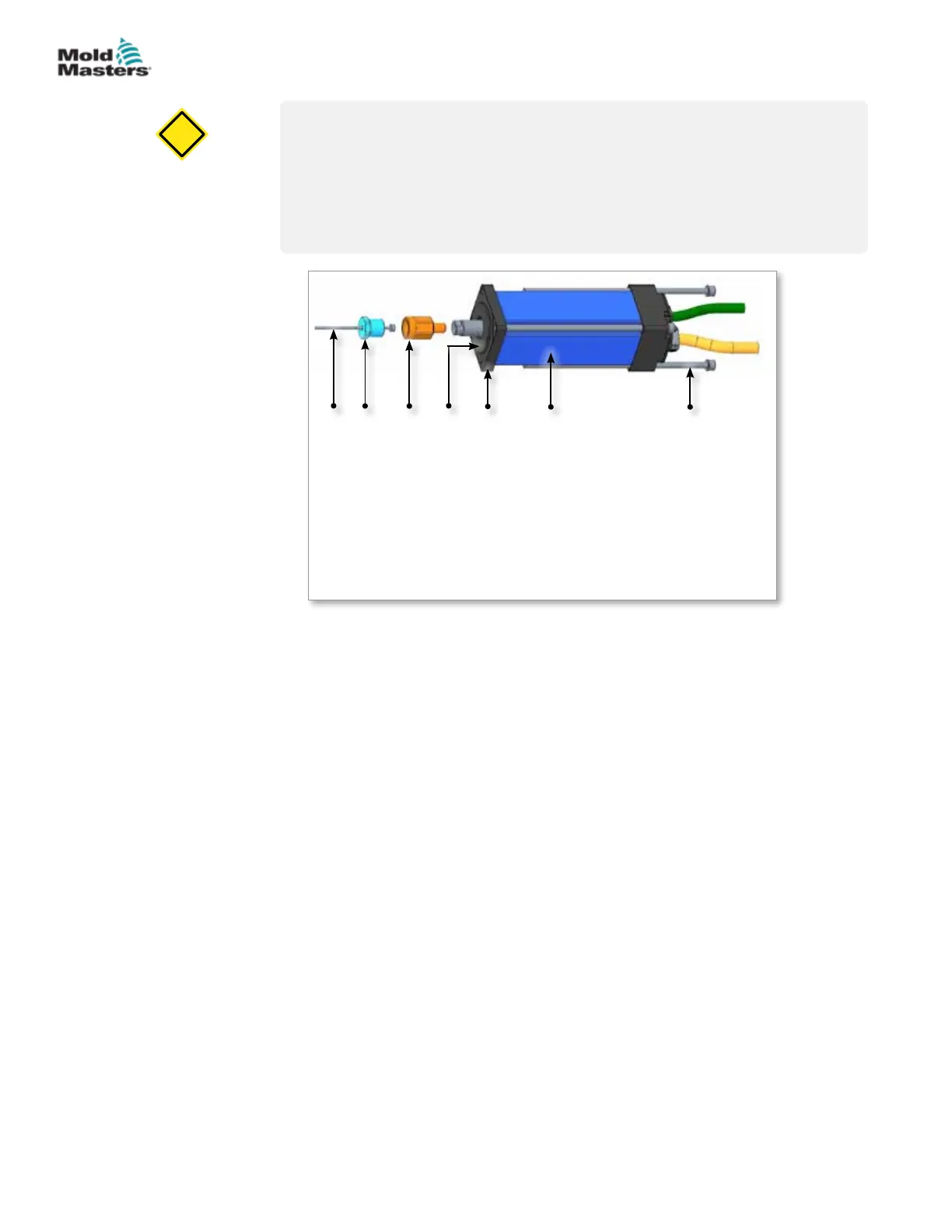

Figure 12-3 SE20-15 actuator
