Mold-Masters Hot Runner - System with Cast-In Heater Element

10
1
2
3
5
6
7
14
13
12
11
8
9
4

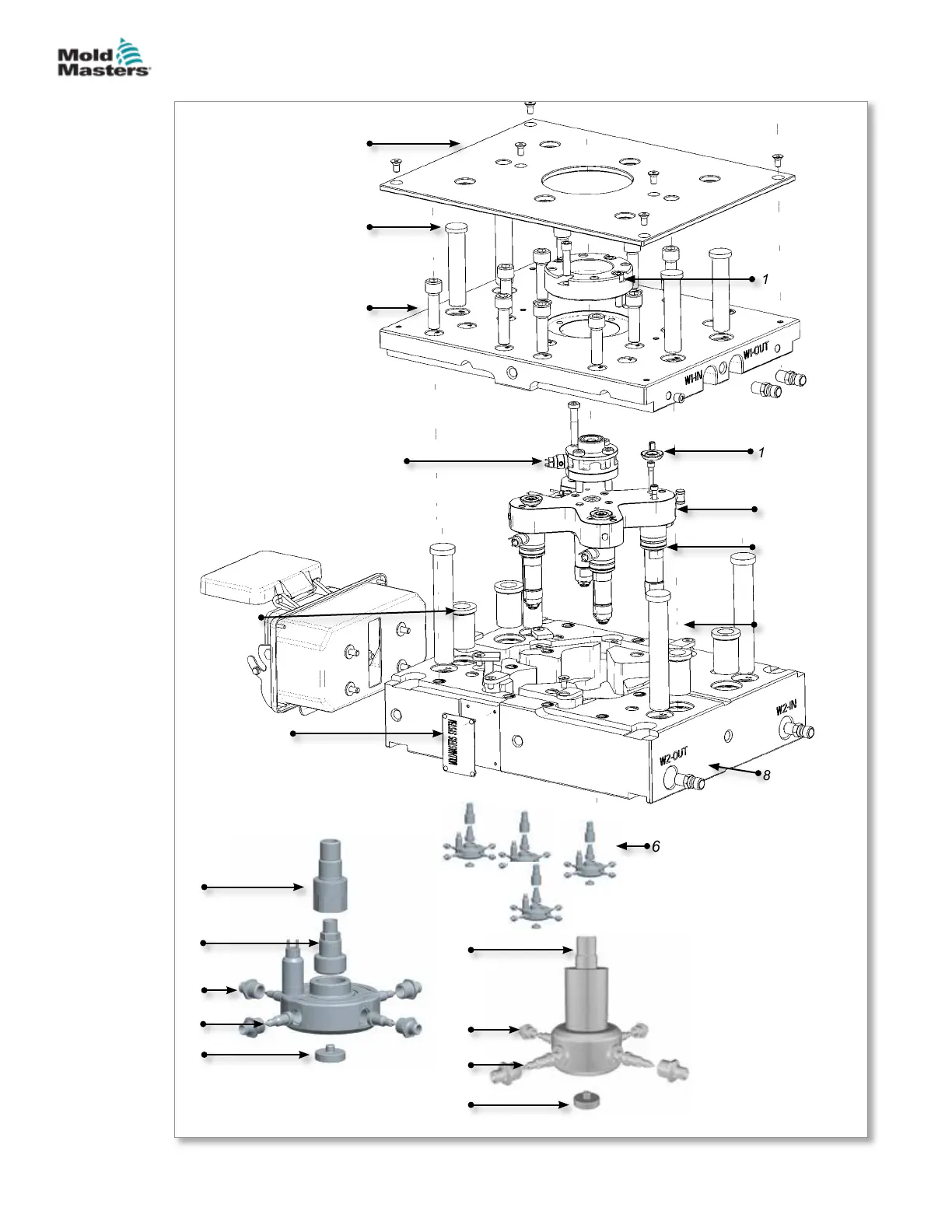

Figure 18-2 Melt-Disk system with cast-in heater element
1. Insulation board
2. Leader pins
3. Top clamp plate
4. Center heater
5. Electrical box
6. Leader bushing
7. Name plate
8. Manifold plate
9. Wire retainer
10. Nozzle
11. Manifold
12. Pressure disk
13. Jiy plugs
14. Locating ring
6
3
4
5
1
2
7
8
9
10
1. Melt transfer link
on nozzle (MTL14A)
2. Melt transfer
link on Melt-Disk
(MTL14B)
3. Transfer seal
4. Torpedo tip
5. Melt-Disk locator
6. Melt-Disk
7. Melt transfer link
8. Transfer seal
9. Torpedo tip
10. Melt-Disk locator
18.2 System with Cast-in Heater Element
18-2
© 2020 Mold-Masters (2007) Limited. All Rights Reserved.
MELT-DISK SYSTEM
Hot Runner User Manual
