17.1.1 Accu-Line™ with Valve Bushing -
Pre-Assembly
NOTE
The Accu-Line™ with valve bushing is used in Centi systems only. For Deci
and Hecto applications, see “17.3 Accu-Line™ with Valve Insert” on page
17-9.
1. Cut pin to calculated length as specied in the General Assembly
drawing. Refer to “Valve Pin Finishing of Tip” on page 10-4.
17.2 Accu-Line™ with Valve Bushing - Assembly
CAUTION
Do not use any tools to install the backup washer to prevent any
overstretching of the hard ring.
CAUTION

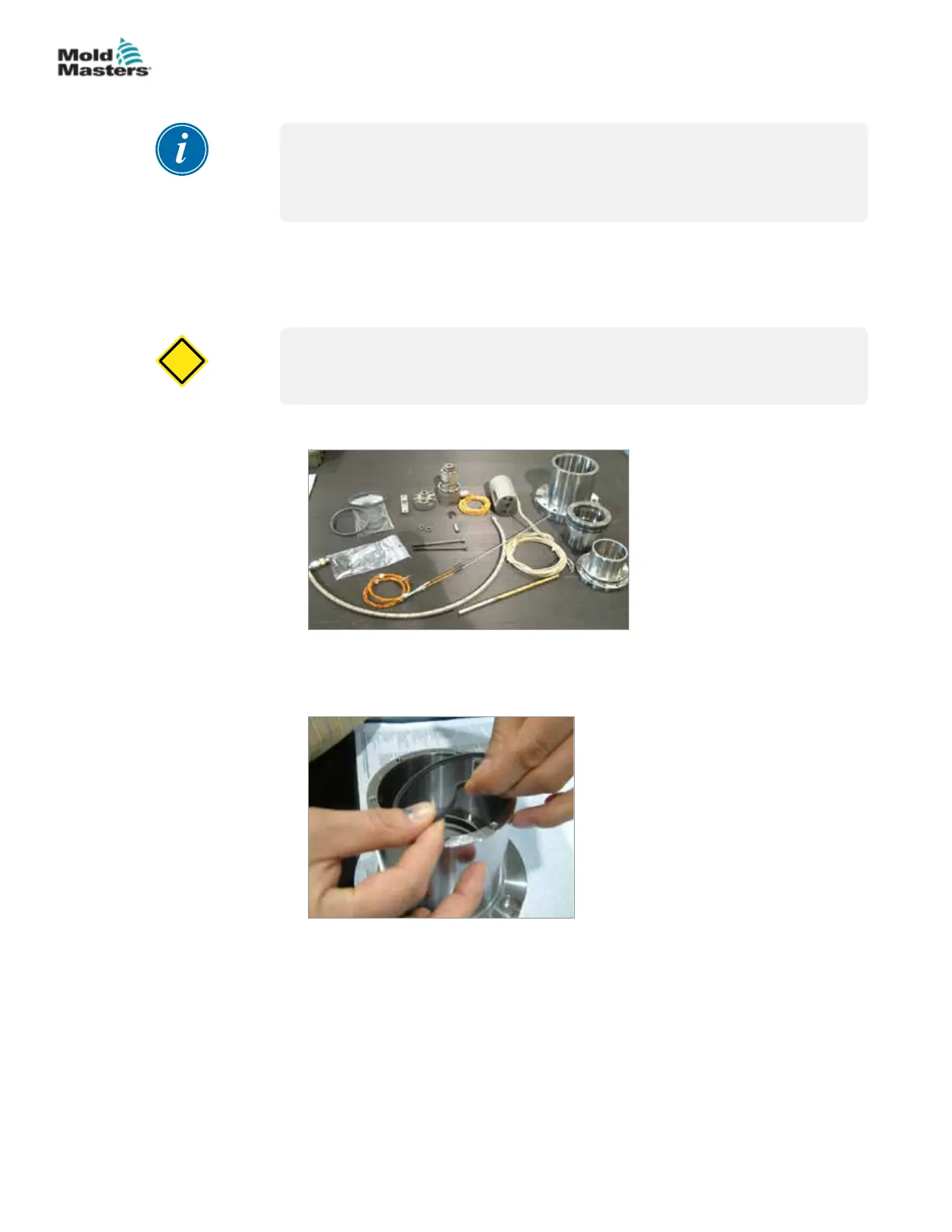

1. Check components against the parts list.
2. Put cylinder backup washer and O-ring into cylinder body groove. Bend
the cylinder hard ring into a kidney shape and insert into position in
cylinder body.
