14.6.6 Assemble the Nut and Lock Magnet Holder
1. Make sure that the thread pitch of the jam nut is 1.00 mm (0.04 in.).
2. Assemble the jam nut into the housing.
3. Adjust the height of the jam nut such that there is a 0.50 mm (0.02 in.)
gap as shown in Figure 14-4.
4. Assemble the part into the synchro plate in heated condition and examine
the valve pin height.
5. Adjust if required and ensure the correct valve pin height.
0.50mm

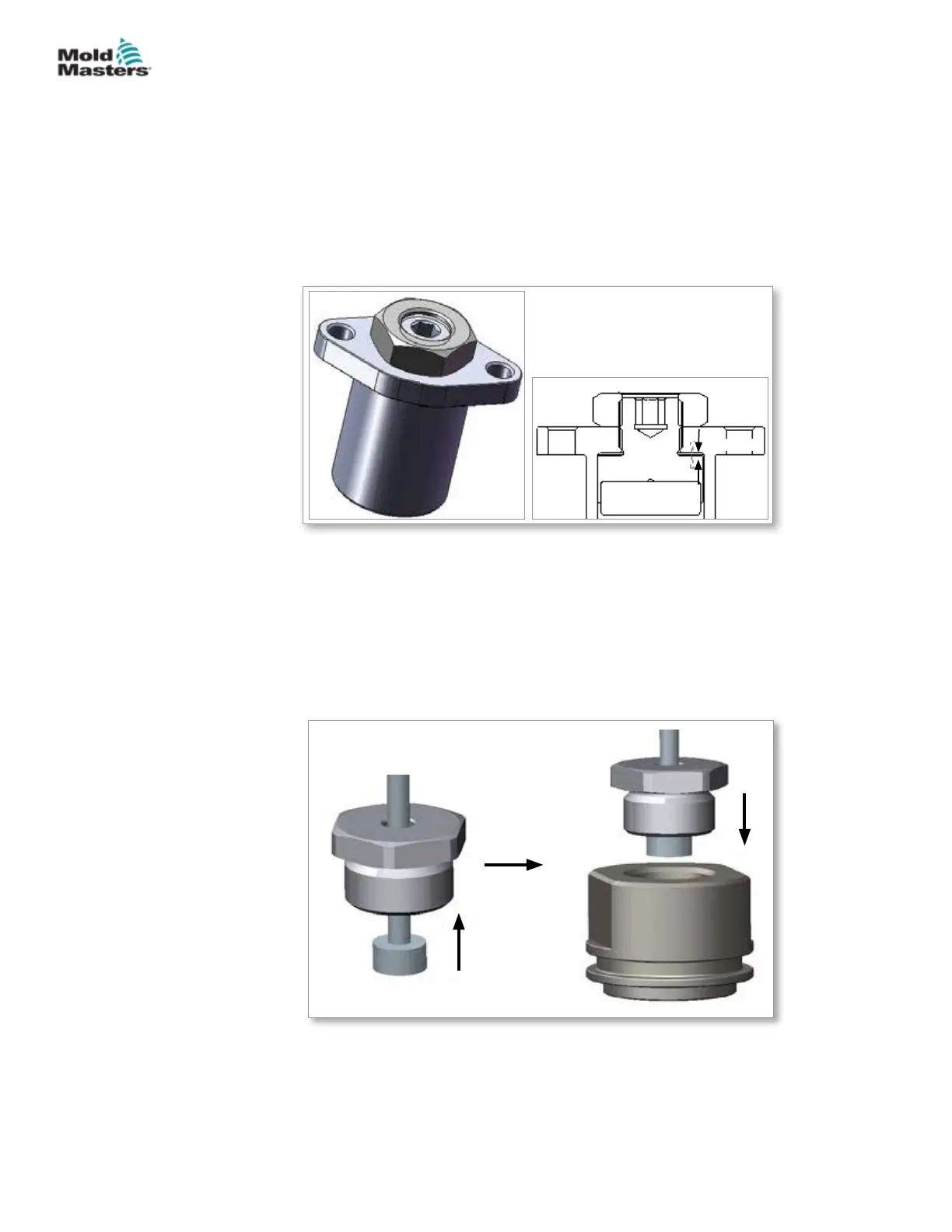

Figure 14-4 Jam nut assembly
14.6.7 Assemble the Valve Pin into the Valve Pin Holder
1. Insert the valve pin into the valve pin retainer.
2. Hold the valve pin holder with your hand.
3. Use a wrench and assemble the valve pin retainer with valve pin into the
valve pin holder.
