WARNING
Ensure the lifting eyebolt, lifting chain and crane are rated to support the
weight of the plate.
When required, lockout and tagout the machine according to the
documented procedures. Failure to do so may result in serious injury or
death.
NOTE
Ensure the outer body dowel pin is on the dowel hole side of manifold plate
and the O-ring is in place on the outer body. See Figure 11-20.
1. Attach the outer body to the manifold plate using socket head cap screws.
Torque to 15 Nm (11 ft-lb). See Figure 11-20.
11.4 Installation
Dowel pin

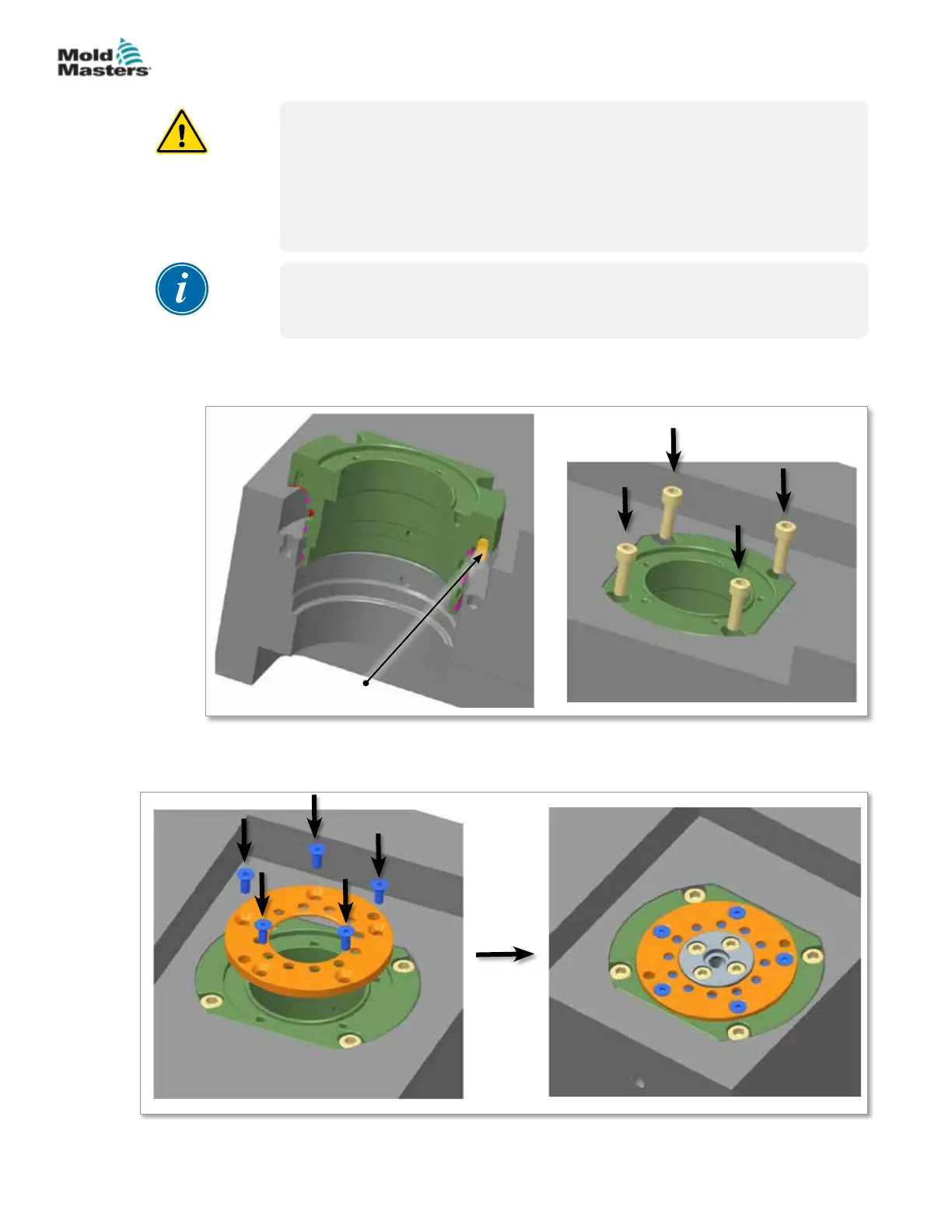

Figure 11-20 Attach outer body to manifold plate.
2. Attach the locating ring to the outer body using at head screws. Torque
to 2.8 Nm (2 ft-lb). See Figure 11-21.
Figure 11-21 Attach locating ring to outer body
