Mold-Masters Hot Runner - O-Ring Installation into Valve Pin Holder; Assemble Valve Pin into Housing Assembly

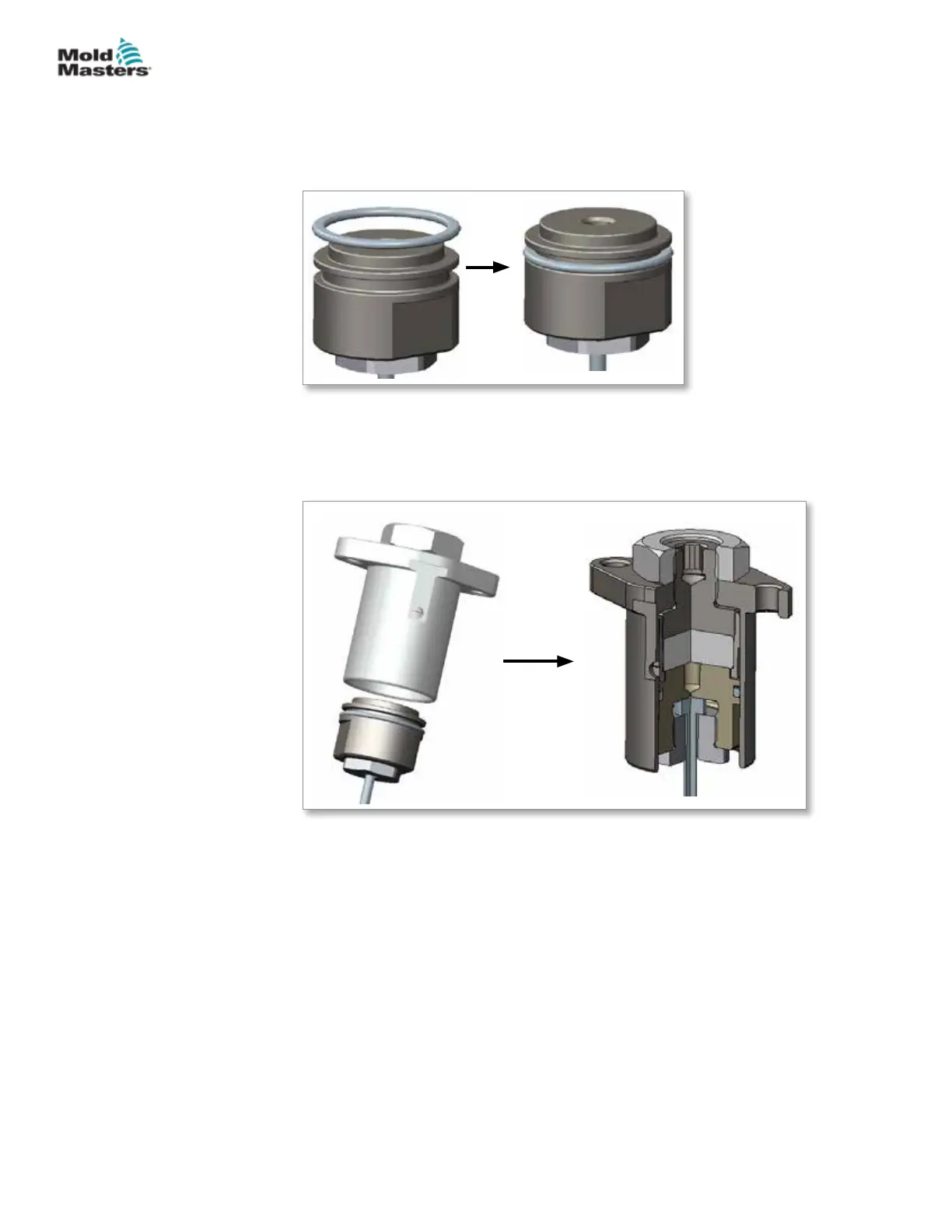

14.6.8 O-Ring Installation into Valve Pin Holder
1. Lubricate the O-ring with a thin layer of high temperature grease.
2. Install the O-ring into the correct groove on the valve pin holder.
3. Use a cloth and clean the excessive grease from the top and side faces.
14.6.9 Assemble Valve Pin into Housing Assembly
1. Carefully assemble the valve pin into the housing assembly.
2. Make sure that there are no impact forces on the magnet.
