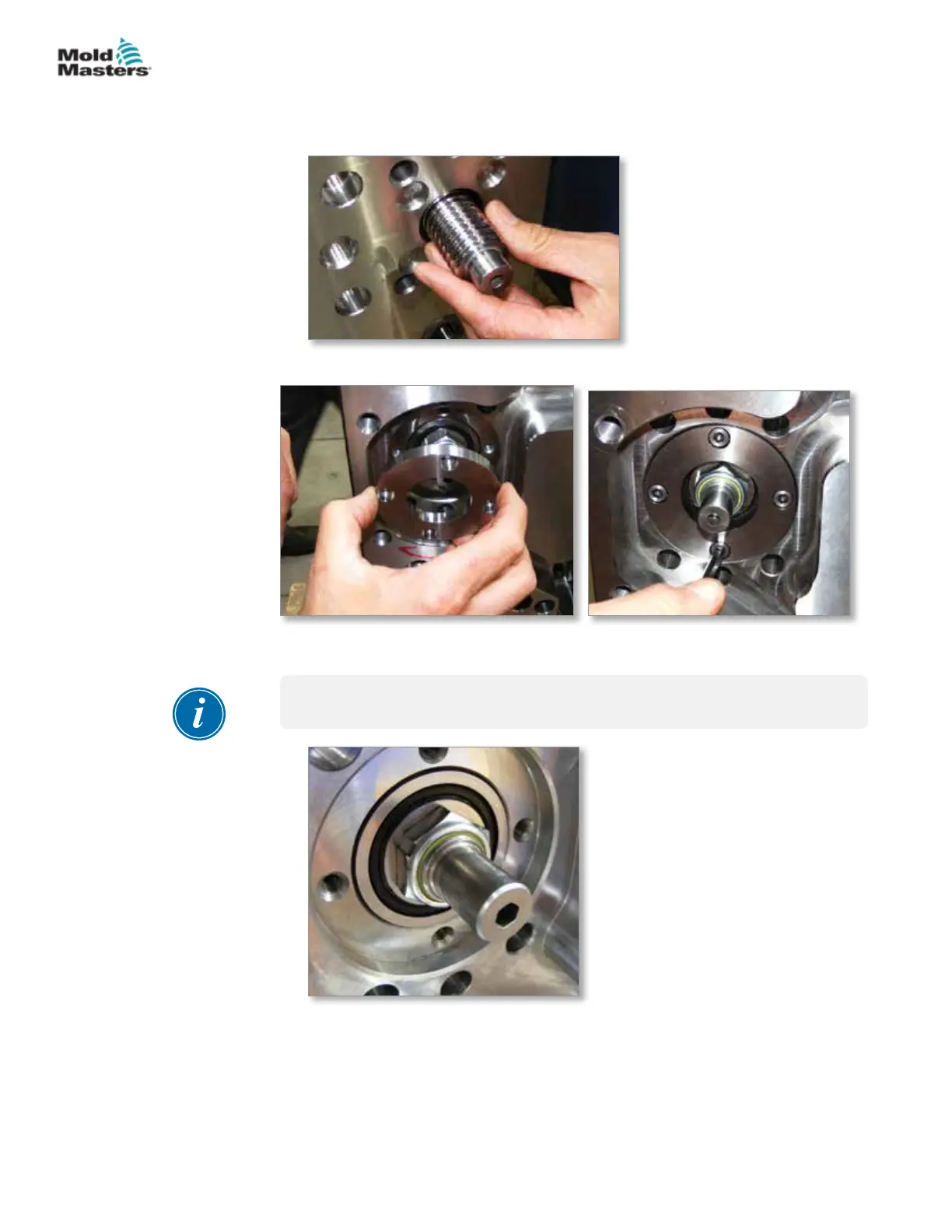

13.3.6 Ball-Screw Assembly
1. Assemble the ball-screw to the top plate (press-t). Bearing will protrude
0.10 mm (0.004 in.) to seal with the cover.
2. Install the cover plate into position.
3. Assemble ball-nut on ball-screw with a torque of 43-45 Nm
(31.7 to 33.1 lbf-ft).
NOTE
Ball-screw mounting kit EDRIVEBSMNTKITP is supplied with the system.
13-9E-DRIVE
Hot Runner User Manual
© 2020 Mold-Masters (2007) Limited. All Rights Reserved.
