4.5.3 System with Bridged Hydraulic Pneumatic System

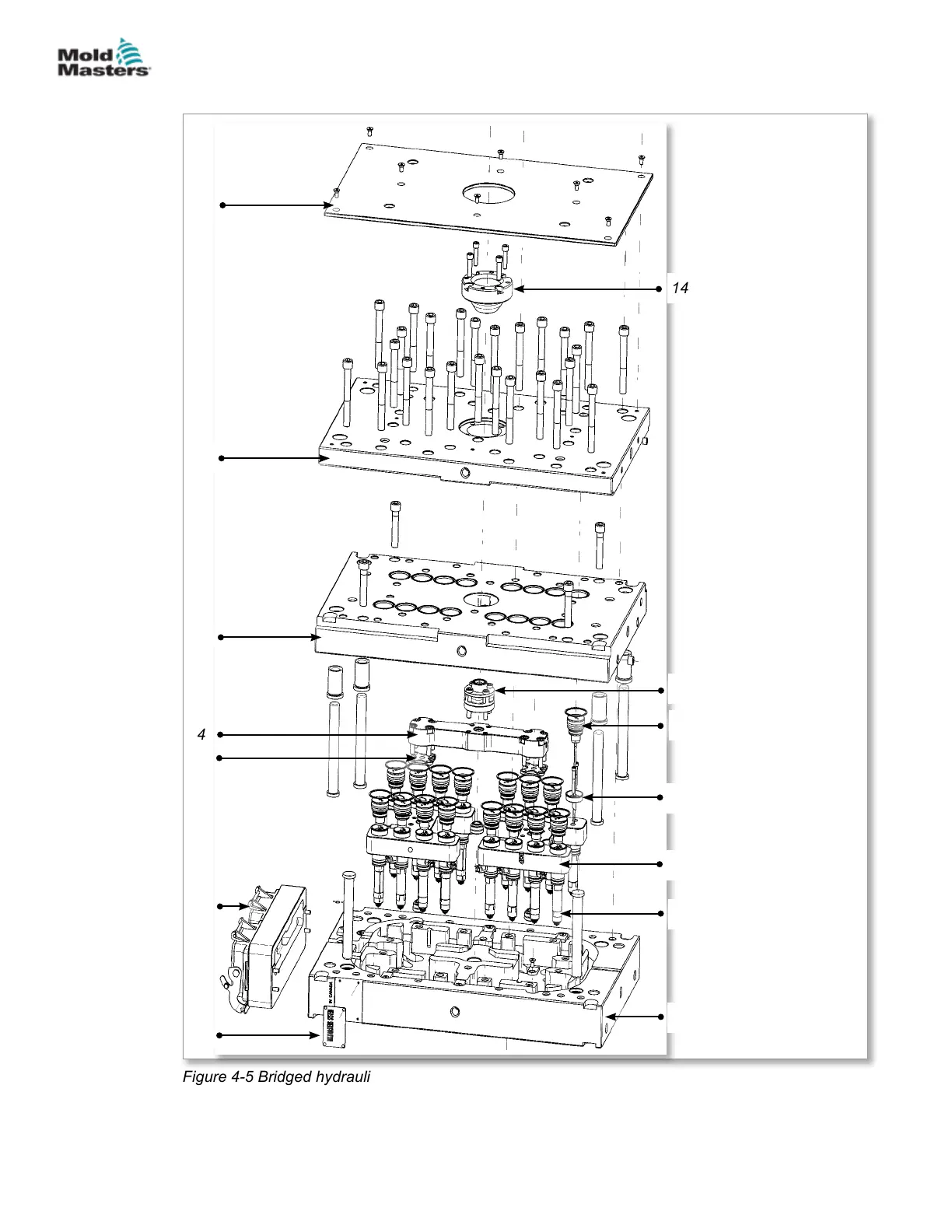

Figure 4-5 Bridged hydraulic pneumatic system
14
1. Insulation board
2. Top clamp plate
3. Hydraulic plate
4. Bridge
5. Step
6. Electrical box
7. Name plate
8. Manifold plate
9. Nozzle
10. Manifold
11. Valve disks
12. Hydraulic /
pneumatic actuators
13. Backplate
14. Locating ring
12
13
1
2
3
4
5
6
7
8
9
11
10
4-6
