Mold-Masters Hot Runner - Section 17 - Accu-Line; 17.1 Accu-Line with Valve Bushing

Section 17 - Accu-Line™
17.1 Accu-Line™ with Valve Bushing
21
20
19
18
17
16
15
14
13
12
11
10
2
1
3
9
8
7
6
5
4
1. Socket head cap screw
2. Actuator cylinder top
3. O-Ring, Viton
4. O-Ring, Viton
5. Guide ring
6. O-Ring, Viton
7. Guide ring
8. Actuator piston
9. Outer cylinder housing
10. Socket head cap screws
11. Actuator 24” con. hose with ttings
12. Actuator heated body
13. Actuator valve pin holder
14. Socket head cap screws
15. Valve pin
16. Dowel pin
17. Socket head cap screw
18. Accu-Line
™
bushing
19. Nozzle
20. Liner
21. Gate seal

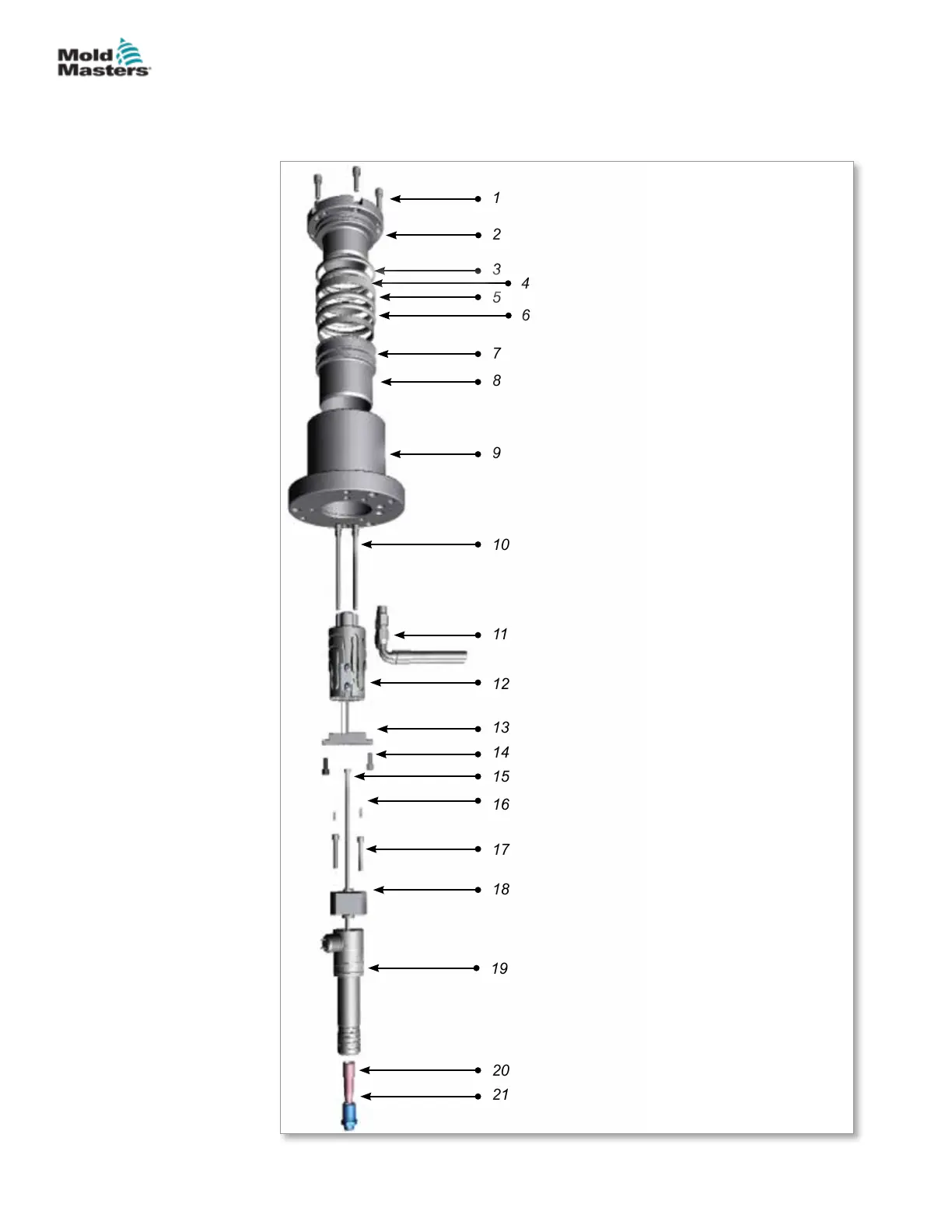

Figure 17-1 Centi Accu-Line™ body assembly
