15.4.1 Installation
1. Push the replacement leads into the holes in the ceramic sleeve.
2. Crimp the leads to the terminal ends.
3. Slide ceramic sleeve over the terminal end.
4. Tighten the set screws on the ceramic sleeve to secure the terminal
assembly.
15.5 Gate Seal Maintenance
Reasons for Gate Seal Maintenance
• Tip damage
• Obstruction to melt ow
• Gate seal damage
• Tip wear

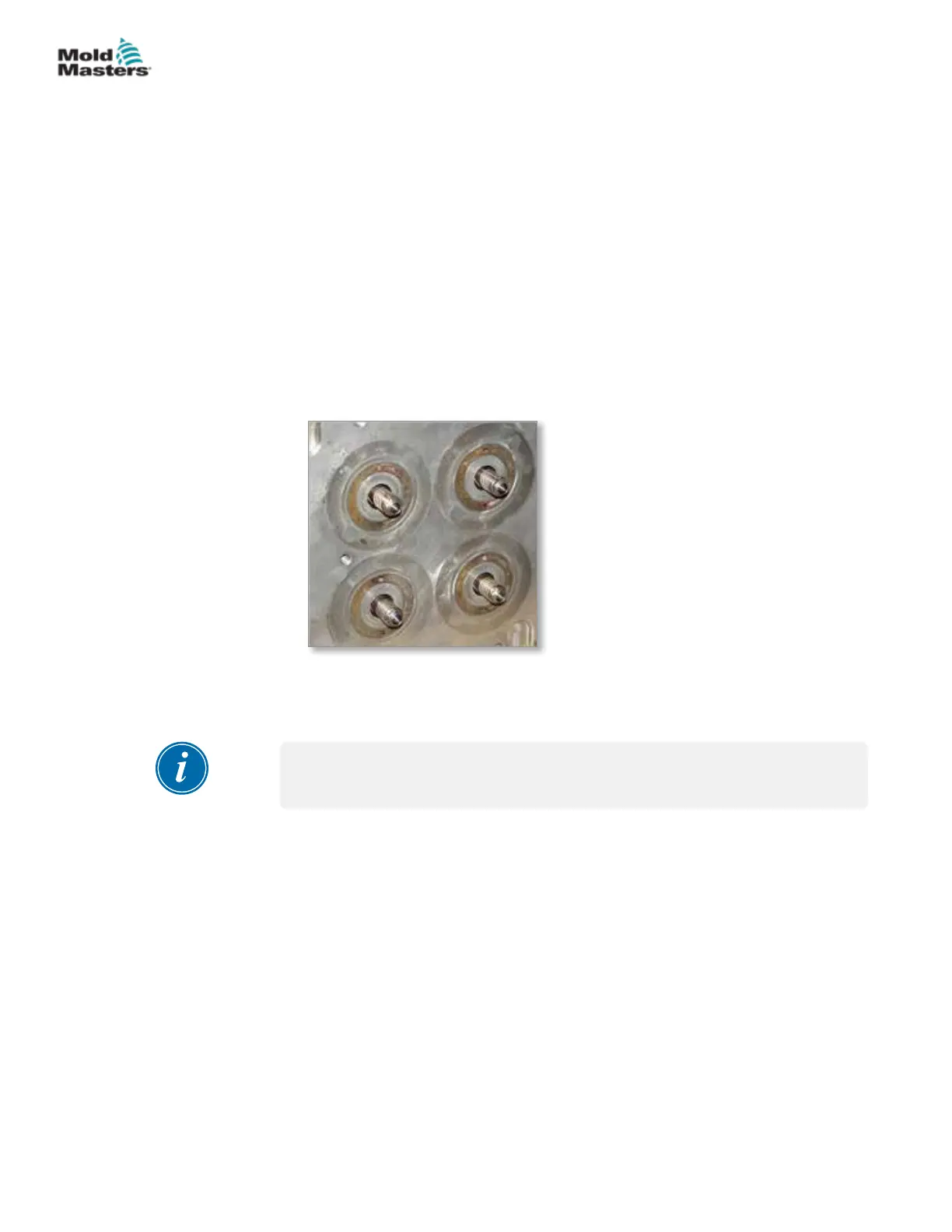

15.5.1 Multi-Cavity Systems
It is advisable to heat the system to ensure the temperature condition is met
to remove the gate seals.
NOTE
Use the socket supplied in the Mold-Masters tool kit to loosen the gate seal.
It is recommended to use a temperature controller for this procedure. If a
temperature controller is not available, contact your nearest Mold-Masters
Service Department.
For gate seal installation and torquing procedures refer to “Gate Seal
Replacement” section.
