14.6.10 Install Mag-Pin Assembly into the Synchro-Plate

1. Heat the system and adjust the valve pin height if the valve pin protrusion

is not correct.

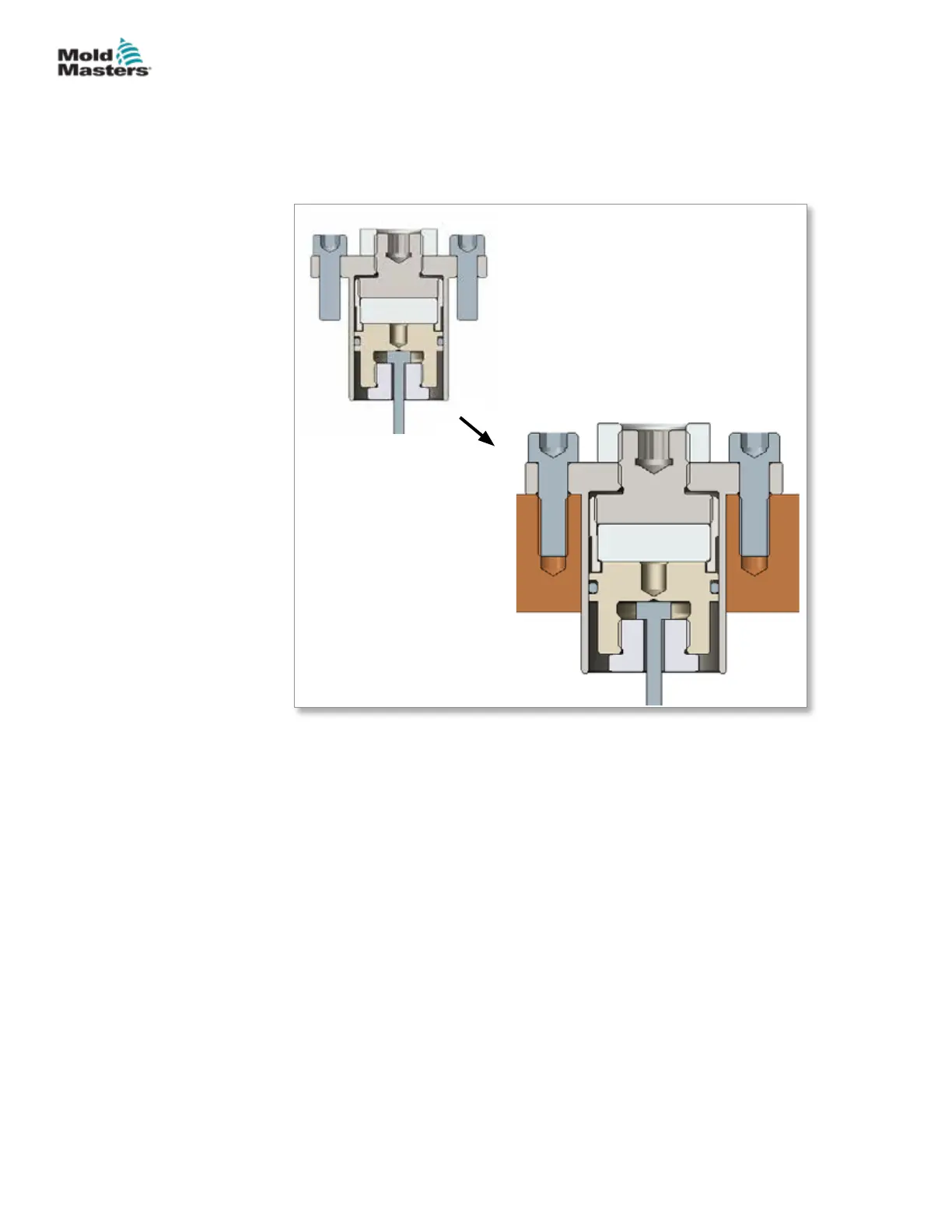

2. The Mag-Pin assembly at this condition can be installed into the synchro-

plate

14-11MAG-PIN OPTION

Hot Runner User Manual
