19.4.10 Melt-CUBE Design B: Install Melt Block
CAUTION
This procedure must be done with the Melt-CUBE at room temperature,
between 10°C and 40°C (50°F and 104°F).
CAUTION

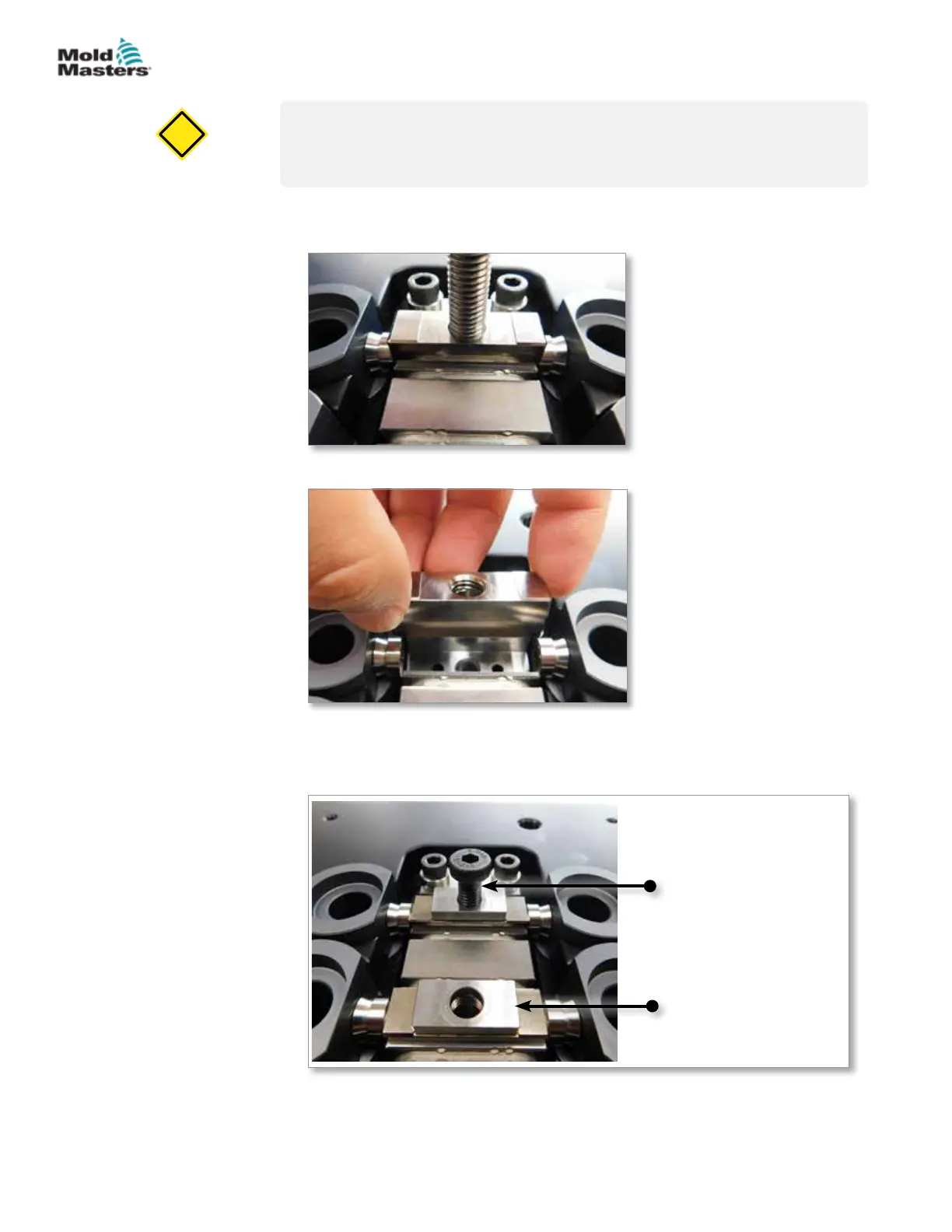

1. Install the melt block assembly with an M10 lifting bolt or by hand. See
Figure 19-26 and Figure 19-27.
Figure 19-26 Install with an M10 lifting bolt
Figure 19-27 Install by hand
2. Insert the rectangular washer and the M8 bolt onto the melt block. Torque
bolt at 27 Nm (20 ft.lbs). See Figure 19-28.
1
2
1. M8 bolt
2. Rectangular washer
Figure 19-28 Install rectangular washer and bolt
Melt-CUBE assembly is now complete.
