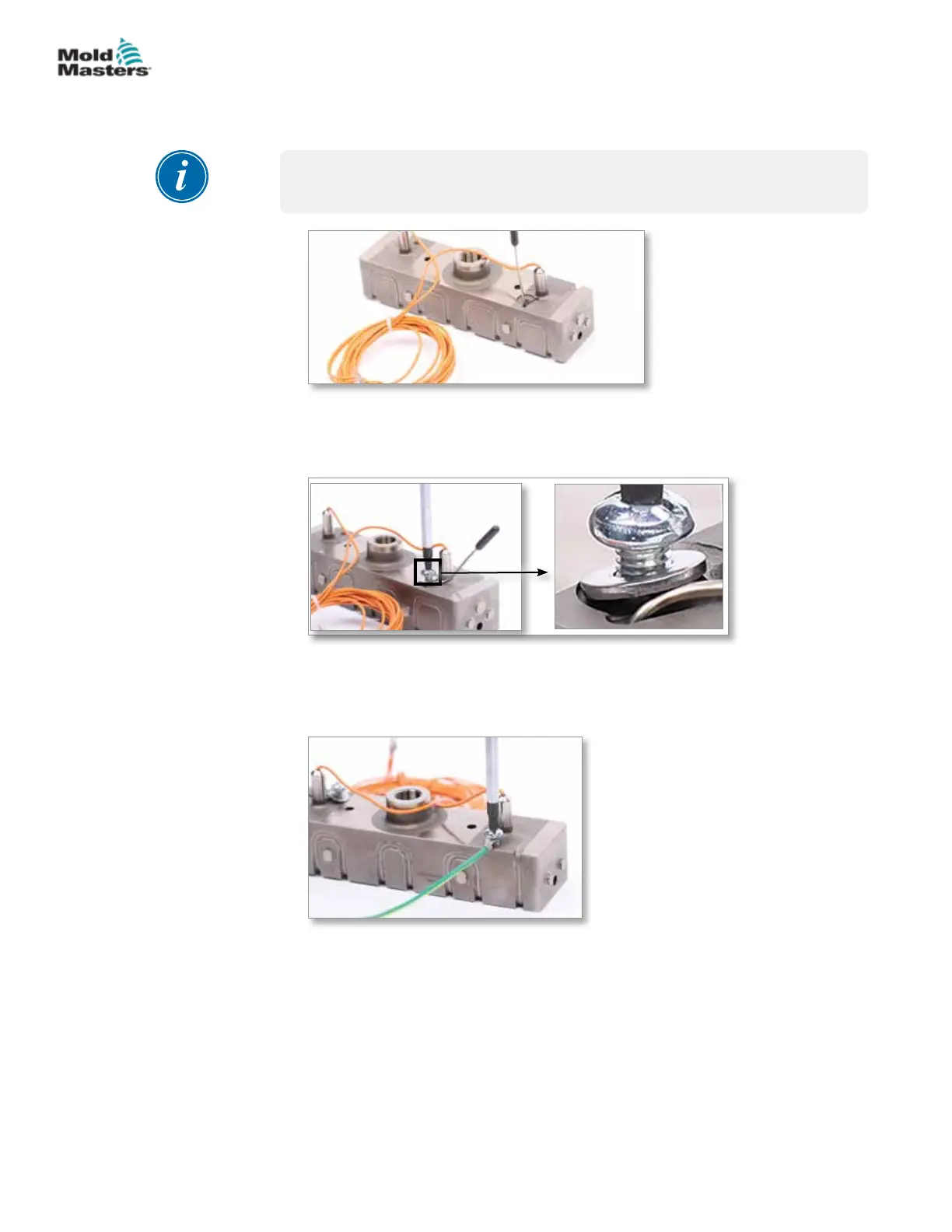

19.3.6 Melt-CUBE Design A: Assemble Melt-CUBE
Thermocouple
1. Insert the thermocouple tip into the thermocouple hole.
IMPORTANT
Thermocouple must touch the bottom of the hole.
2. Bend the thermocouple back 90° to sit in the manifold channel.
3. Apply anti-seize compound to the retaining screw. Secure the
thermocouple with the screw.
19.3.7 Melt-CUBE Design A: Assemble Ground Wire
1. Apply anti-seize compound to the retaining screw. Secure the ground wire
with the screw.
